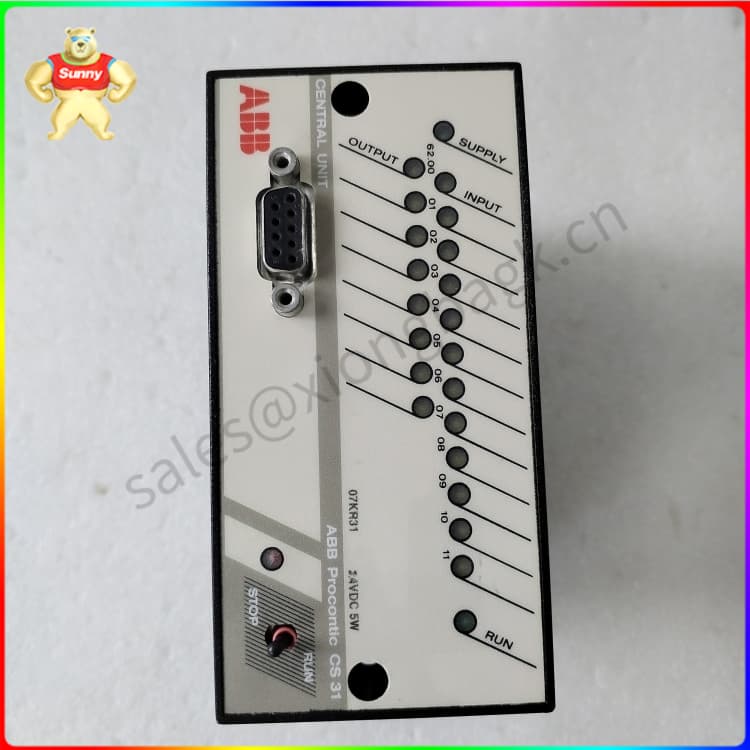

ABB 07KR31 – CS31 Series Compact PLC CPU for Distributed Machine Control
The ABB 07KR31 is a central processing unit within the Procontic CS31 distributed PLC platform. It integrates 12 digital inputs (24 VDC) and 8 relay outputs alongside a 2K-word EEPROM program memory, a 10 kHz high-speed counter channel, and RS485 system bus connectivity. The architecture appears to prioritize compact cabinet integration for small-to-medium automation tasks—conveyor control, valve sequencing, and basic PID loops—without requiring external I/O expansion modules. In standard configurations, you’ll typically see this unit deployed in retrofit scenarios where panel space is constrained and multi-voltage compatibility (24 VDC / 120 VAC / 230 VAC) simplifies power distribution planning.
Ordering & Delivery Assurance
Units currently in warehouse stock are typically dispatched within one week of order confirmation. For configurations requiring factory sourcing, lead time extends to a maximum of four weeks depending on production schedules. Commercial terms follow a structured payment model: 50% advance payment secures the order, with the full balance due prior to dispatch. Express logistics are handled through FedEx, UPS, or DHL networks, with tracking documentation provided at the point of shipment. One thing to note is that all units ship with a 12-month (365-day) warranty covering manufacturing defects in core components including the processor, EEPROM, and communication circuitry.
Key Practical Features
Technical Specifications
| Power Requirements | 24 VDC / 120 VAC / 230 VAC (field-selectable); typically requires regulated supply within ±10% tolerance |
| Dimensions & Mounting Footprint | 120 mm (H) × 63 mm (W) × 115 mm (D); DIN rail snap-mount |
| Operating Temperature | 0 °C to +55 °C (no derating required within range) |
| Signal I/O Types | 12× 24 VDC digital inputs; 8× relay outputs (max 5 A per contact); 1× 10 kHz high-speed counter channel |
| Communication Interfaces | RS485 system bus (CS31 protocol); RS232 programming port |
| Installation Method | 35 mm DIN rail (EN 60715); tool-free snap-on latch with positive retention |
Compatible & Supporting Modules
07KT31 – Transistor Output CPU: Identical CS31 form factor and I/O count, but replaces relay outputs with transistor-type switching. Suited for high-frequency DC load cycling where relay contact wear would be a concern.
07KR91 – Extended Memory CPU: Same relay output architecture with program capacity expanded to 7K words and increased I/O point allocation. Addresses multi-step process sequences that exceed the 07KR31’s 2K-word limit.
ICF16 – Remote Digital I/O Expansion Module: Adds 16 additional digital I/O channels via CS31 bus connection. Enables distributed sensor placement without extending hardwired runs back to the central CPU.
Field Installation & Routine Maintenance
The 07KR31 carries an IP20 enclosure rating and is intended for installation within a protective cabinet or control panel. Standard35 mm DIN rail mounting per EN 60715 applies; in most rack installations, ventilation clearance should exceed 50 mm above and below the module to maintain thermal headroom within the 0–55 °C operating envelope. Terminal blocks separate line-voltage supply connections from low-voltage signal wiring—field personnel should verify segregation to prevent cross-circuit faults.
Communication cabling (RS485 bus) should be routed separately from power conductors and VFD output cables to mitigate electromagnetic interference. Firmware and logic backup is performed via the RS232 programming port using ABB Procontic CS31 configuration software; annual backup intervals are recommended as a baseline, with additional captures following any logic modification. EEPROM storage retains program data without battery support during power loss.
Routine maintenance typically involves quarterly terminal inspection for dust accumulation and torque verification on screw-type connections. Relay output contacts should be examined for pitting or carbon buildup at 12-month intervals, particularly on circuits driving inductive loads. Calibration of analog signal paths (if expansion modules are attached) follows a 24-month cycle under standard process conditions.
Compliance & Quality Backing
The 07KR31 holds CE marking for compliance with applicable European directives on electromagnetic compatibility and low-voltage safety. The unit meets IP20 ingress protection requirements for indoor panel-mounted use. RoHS material compliance applies to all current-production units.
Manufacturer warranty covers12 months (365 days) from delivery date, encompassing defects in the processor, EEPROM memory, and communication interface circuitry. Damage resulting from wiring overload, liquid ingress, or sustained operation beyond rated thermal limits falls outside warranty scope. Orders are fulfilled on a 50% advance payment basis with balance settlement prior to dispatch. In-stock inventory ships within one week; sourced units require up to four weeks. All shipments move via FedEx, UPS, or DHL express services with full tracking documentation.
