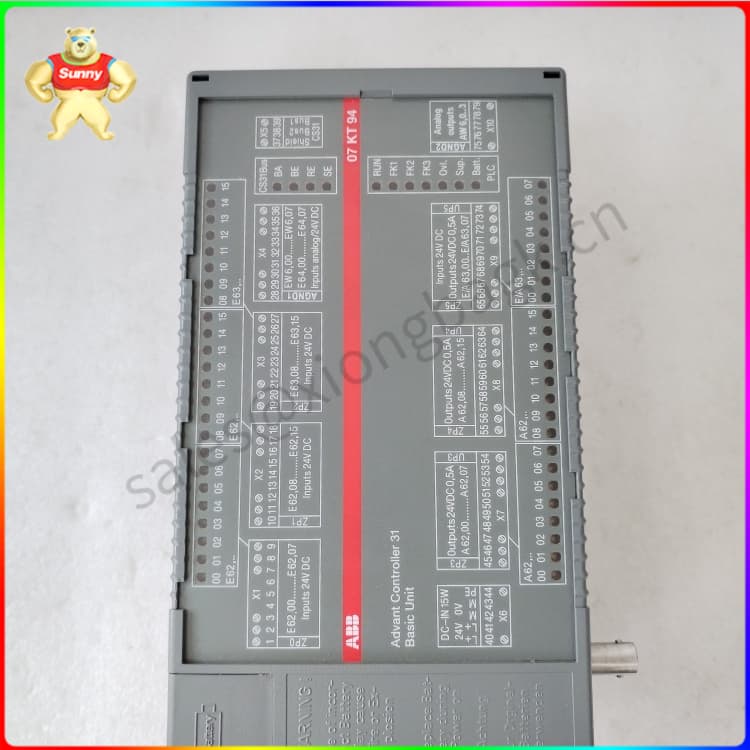

ABB 07KT94H

ABB 07KT94H – AC31 Series PLC Central Processing Unit for Industrial Logic Control

$5,100.00

The ABB 07KT94H is a rugged, drop-in replacement CPU for legacy AC31 PLC systems—featuring integrated digital/analog I/O, CS31/RS232/Modbus communication, metal housing, and self-diagnostics. Ideal for power plants, refineries, and process industries needing reliable, low-downtime upgrades without full system overhauls. Backed by 365-day warranty and fast global shipping.

Add to quote
Category: Tags:

Description

ABB 07KT94H – AC31 Series PLC Central Processing Unit for Industrial Logic Control

ABB 07KT94H AC31 PLC CPU Unit

Ordering & Delivery Assurance

The ABB 07KT94H is available for immediate procurement with a standard 12-month (365-day) warranty covering manufacturing defects from the date of delivery. In-stock units typically ship within one week of order confirmation. Where sourcing from secondary supply channels is required, the maximum lead time extends to approximately four weeks. Commercial terms require a 50% advance payment at order placement, with the full balance settled prior to dispatch. All shipments are routed through FedEx, UPS, or DHL express logistics to minimize transit exposure for sensitive electronic components.

Key Practical Features

Product ID: 07KT94H
Type Designation: Integrated PLC CPU Unit – Advant Controller 31 Series
Catalog Description: Central processing unit with native digital and analog I/O, system bus interface, and onboard diagnostics for AC31 control architectures
Core Function: Executes logic operations, field signal acquisition, and equipment sequencing for mid-range process control in power generation, chemical processing, and manufacturing lines
HS Code: 8537.10.9000 (typically classified under programmable controller assemblies for industrial voltage ≤1,000 V)
Net Weight: 0.8 kg
Warranty: 12 months (365 days) from delivery date, excluding damage from unauthorized disassembly, overvoltage, or thermal abuse

Technical Specifications

Power Requirements 24 VDC regulated supply (typically requires stable ±5% tolerance)
Dimensions & Mounting Footprint 236 × 96 × 218 mm (H × W × D)
Operating Temperature 0 °C to +55 °C, non-condensing environment required
Signal I/O Types Integrated digital inputs/outputs and analog inputs/outputs via terminal-block connectors
Communication Interfaces CS31 system bus, RS232, RS485, Modbus RTU
Installation Method DIN rail snap-mount with latch retention
Processor 40 MHz industrial-grade CPU
Enclosure Metal-reinforced housing with EMI shielding

Compatible & Supporting Modules

07KT94R161 – Variant of the base AC31 CPU with a modified I/O point allocation, typically suited for lower-density control loops where full analog channel count is unnecessary.
07KT95 – Extended-capacity CPU unit supporting additional external I/O expansion modules on the CS31 bus, designed for multi-device coordination in larger process segments.
07DI92 – Digital input expansion card that adds discrete signal acquisition channels to the CS31 bus, commonly deployed when field limit switch or proximity sensor counts exceed the base CPU capacity.

Field Installation & Routine Maintenance

The 07KT94H mounts to standard 35 mm DIN rail using an integrated snap-latch mechanism. In most rack installations, ventilation clearance should exceed50 mm above and below the unit to maintain thermal headroom within the 0–55 °C operating envelope. The enclosure is rated for indoor cabinet use and typically requires a minimum IP54-rated panel in dusty or humid process areas.

Before removal or installation, isolate the 24 VDC supply and allow board-level capacitors to discharge fully—typically a 60-second wait is sufficient. Terminal wiring follows labeled screw-clamp connections; one thing to note is that CS31 bus cabling must be terminated before connecting field I/O to avoid bus contention errors during power-up. Firmware and program backup should be performed via the RS232 service port using ABB Procontic CS31 engineering software prior to any unit swap.

Routine maintenance intervals are recommended at six-month cycles. This includes clearing particulate accumulation from ventilation slots, verifying battery status via the front-panel indicator, and replacing the backup lithium cell when the low-battery LED activates—failure to do so will result in loss of retained program memory. Calibration of analog I/O channels should be verified annually against known reference signals, particularly in environments with sustained thermal cycling.

Compliance & Quality Backing

The ABB 07KT94H carries CE marking and conforms to IEC 61131 standards for programmable industrial controllers. The unit is manufactured under ABB’s ISO 9001 quality management system. RoHS compliance applies to production batches manufactured after the directive’s enforcement date.

Each unit ships with a 12-month (365-day) warranty from the delivery date, covering defects in materials and workmanship under normal operating conditions. Damage resulting from unauthorized board-level disassembly, operation outside rated temperature or voltage specifications, or improper field wiring is excluded from warranty coverage. Delivery is fulfilled within one week for in-stock inventory, with a maximum four-week window when sourcing is required. Payment structure is 50% advance at order confirmation, balance due in full prior to dispatch. Express shipment is handled via FedEx, UPS, or DHL depending on destination and parcel weight.

Please contact Sunny sales@xiongbagk.cn for the best price.

➱ sales manager: Sunny
➱ email mailto: sales@xiongbagk.cn
➱ Skype/WeChat: 18059884797
➱ phone/Whatsapp: + 86 18059884797
➱ QQ: 3095989363
➱ Website:www.sauldcs.com
