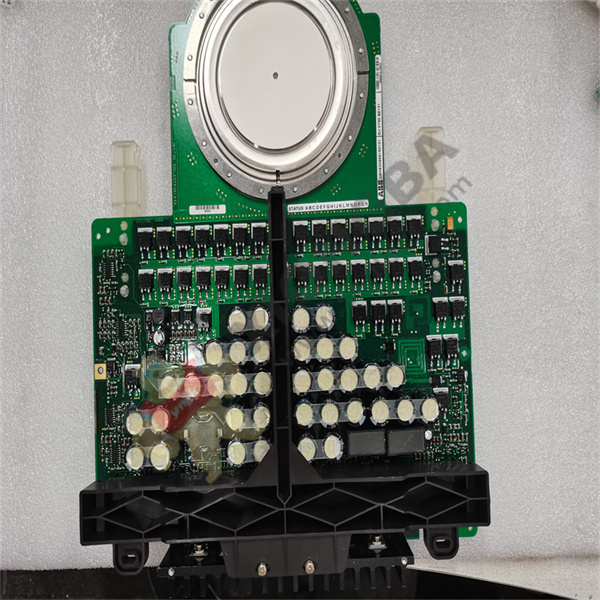

ABB 3BHB012961R0001 / 5SHX 2645L0002 IGCT Module

The designation 3BHB012961R0001 is ABB’s material code for the IGCT device commonly referred to as 5SHX 2645L0002. It’s part of ABB’s proven IGCT family used in medium/high‑voltage inverters, SVC/STATCOM, HVDC converters, wind converters, and rail traction drives. You might notice different figures online for this device; in practice, it’s a 4.5 kV voltage‑class IGCT with a 2.6 kA current class, designed to be operated snubberless with an ABB gate unit and a water‑cooled heatsink. From my experience, it’s chosen when engineers want thyristor‑like conduction loss with transistor‑grade turn‑off control and high system reliability.

Key Features

• 4.5 kV voltage class, 2.6 kA current class – Suited for MV converters and grid equipment where high blocking voltage and robust turn‑off are essential.
• Snubberless turn‑off topology – IGCT architecture allows operation without external snubbers in many cases, simplifying busbar design and reducing losses.
• Low on‑state losses – Typically lower conduction drop than comparable high‑power IGBT modules, helping improve system efficiency at high load factors.
• High di/dt and thermal robustness – Press‑pack construction provides uniform current sharing and predictable failure mode for high reliability in series/parallel arrangements.
• Works with ABB fiber‑optic gate units – Optical triggering and status paths (via the gate unit) provide noise immunity in high‑dv/dt environments.
• Optimized for water‑cooled heat sinks – Intended for conduction‑to‑liquid cooling to keep junction temperatures stable under heavy cycling.
• Well‑proven in MV drives, SVC/STATCOM, and traction – Deployed widely where a few hundred Hz to low‑kHz switching with very high power density is required.

Technical Specifications

Related or Supporting Products

• ABB 5SHX 26L4510 – Same 4.5 kV class; earlier revision with similar mechanical outline and slightly different switching/thermal limits.
• ABB 5SHX 26L4520 – 4.5 kV class with enhanced turn‑off capability; drop‑in family variant in many housings.
• ABB 5SHX 36L series – Higher current class options for projects needing additional margin at elevated ambient temperatures.
• IGCT Gate Unit (ABB, 4.5 kV class) – Required driver providing fiber‑optic interface, desaturation/temperature protection, and 24–30 VDC supply.
• Water‑cooled heat sink plate – Rated for deionized water; sized to maintain junction temperature within ABB limits at target switching frequency.
• Low‑inductance busbar kit – Laminated busbars to minimize stray inductance and overshoot during turn‑off.

Installation & Maintenance

• Panel/Cabinet – Use a rigid enclosure (typically IP54 or better). Provide space for straight busbar routing and optical fibers. Keep high‑dv/dt paths short and shielded.
• Clamping & Mounting – Press‑pack devices require specified clamping force across clean, parallel copper plates. Follow ABB torque/force guidelines and avoid particulate contamination.
• Cooling – Water‑cooled heat sink with deionized water is recommended. Monitor flow, inlet temperature, and conductivity. From my experience, stable coolant quality significantly extends device life.
• Wiring – Use laminated/low‑inductance busbars. Keep gate unit connections short and per ABB layout notes. Fiber‑optic cables should have minimum bend radius and secure connectors.
• Safety – Respect 4.5 kV creepage/clearance rules. Discharge DC link before service. Verify clamping force after thermal cycles.
• Routine Maintenance – Inspect coolant filters and conductivity, retighten clamps per schedule, check for hot spots via thermal imaging, and update gate unit firmware where applicable.

Quality & Certifications

• Manufacturing quality – Produced in ISO 9001/ISO 14001 certified facilities.
• Materials compliance – RoHS compliant in most regions for this device category.
• Regulatory notes – CE/UL markings typically do not apply to discrete power semiconductor devices; system‑level compliance depends on the final assembly.
• Warranty – 365‑day warranty as stated above.
