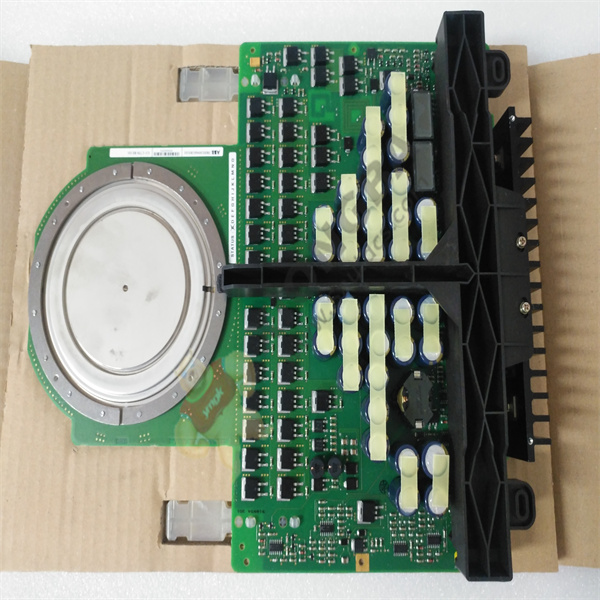

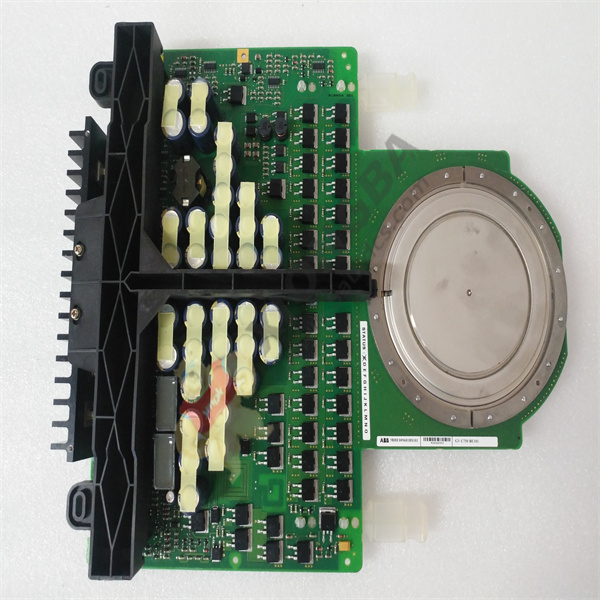

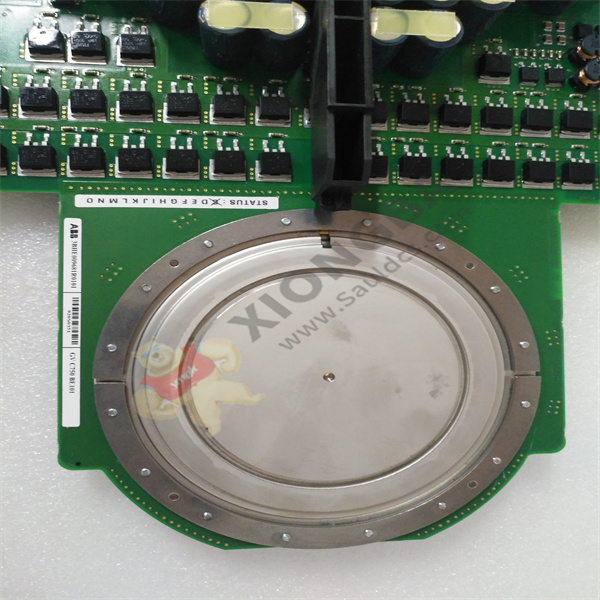

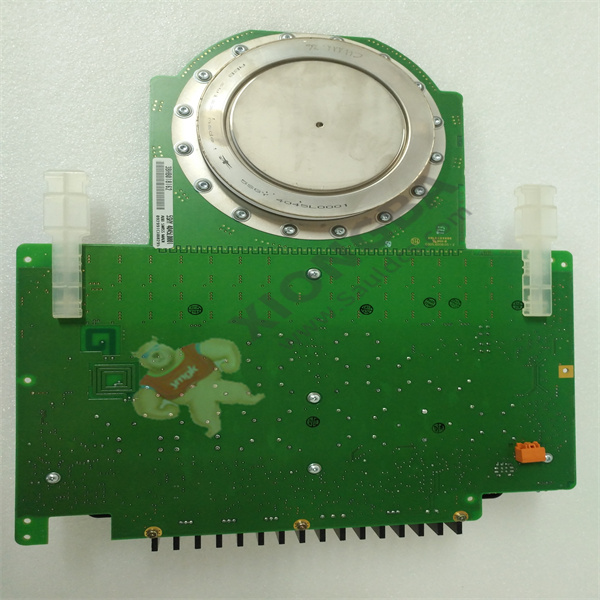

ABB 3BHE009681R0101 (GVC750BE101) – IGCT Gate Unit for Medium-Voltage Drives and Traction Inverters

The part number 3BHE009681R0101, known as GVC750BE101, is ABB’s dedicated IGCT gate unit typically paired with the IGCT device 5SHY3545L0009 in medium-voltage converters. From my experience, this unit sits right at the heart of reliable commutation: it delivers the high peak gate current and precise turn-off control IGCTs need, while keeping wiring straightforward with fiber-optic command/feedback. You might notice the “750” in the name—this points to the current class of the converter leg the unit is designed to serve.

Key Features

• Purpose-built for ABB IGCTs – Matches IGCTs such as 5SHY3545L0009, ensuring the high di/dt gate drive needed for snubberless operation in many cases.
• Fiber-optic command/feedback – Galvanically isolated Rx/Tx links typically used in MV drives and traction systems; clean EMC behavior and easy routing.
• 750 A current class pairing – Suited for converter legs around the 750 A class; helps maintain efficient switching up to the typical few-hundred-hertz range.
• Robust protection – Supports fast fault signaling and controlled shutdown; typically improves stack reliability under grid dips or motor transients.
• Compact, service-friendly build – Straightforward bolt-on/stack mounting with standard ABB connectors; swap-out time is usually short.
• Industrial-temperature electronics – Designed for ambient conditions seen in MV drive cabinets; no exotic cooling required for the gate unit itself.
• Application versatility – Medium-voltage drives, traction inverters, renewable converters, and heavy industrial power controllers.

Technical Specifications

Note: Dimensions and mass are indicative for the gate unit hardware; the mated IGCT power device (e.g., 5SHY3545L0009) is significantly heavier due to its ceramic package and clamping hardware.

Related or Supporting Products

• 5SHY3545L0009 – ABB IGCT power device (4.5 kV class IGCT used in many MV stacks). Pairs with GVC750BE101 for snubberless or reduced‑snubber operation, depending on the design.
• 3BHB013085R0001 – ABB control/driver board used in some converter platforms to interface supervision logic and the gate unit.
• GVC750BE10x (later revisions) – Same current class with incremental mechanical/firmware updates; typically drop‑in, but always verify connectors and optical polarity before swap.
• GVC1250 series – Higher current-class gate units for larger converter legs; similar interface concept, different current capability.
• Fiber‑optic transmitter/receiver pairs – Matched optical links for command/status; using ABB-recommended parts helps avoid timing skew issues.
• Clamping sets and heat sinks – Required for the IGCT disc device (not part of the gate unit). Water-cooled blocks are common in MV drives; air-cooled sinks appear in some lower-duty applications.

Installation & Maintenance

• Cabinet & environment – Install in a sealed control cabinet (typically IP54 or better) with stable airflow. Keep fiber optics clear of tight bends and power busbars to minimize EMI pickup.
• Mounting – Bolt the gate unit per ABB mechanical drawings. When coupling to the IGCT, follow the specified clamp torque and ensure the gate connector seats fully without stress.
• Wiring – Use clean 24 V DC auxiliary supply with proper grounding. Route optical fibers and low-voltage harnesses separately from high di/dt conductors.
• Safety – De-energize and discharge DC links before service. Treat the IGCT stack as high-energy equipment; observe ESD precautions when handling the gate electronics.
• Routine checks – Inspect optical connectors for contamination, verify connector latching, and check auxiliary voltage under load. Many teams do a brief functional test after firmware or setpoint changes.
• Calibration/updates – If a firmware or parameter set applies to your platform, update during scheduled outages and document timing/threshold changes (typically via the drive OEM’s procedure).
• Cleaning – Light dusting only; avoid solvents. Ensure ventilation paths remain open to keep ambient within specification.

Quality & Certifications

• Manufactured under ISO 9001 quality systems (ABB production)
• RoHS and REACH compliant components, typically used in CE-marked drive systems
• Type testing aligned with relevant IEC power semiconductor/gate-unit practices (e.g., IEC 60747 series for devices; IEC 60068 environmental tests)
• Warranty: 365 days from shipment

Typical Use Cases

• Medium-voltage motor drives in metals, mining, cement, and marine propulsion
• Traction inverters where robust commutation and fiber isolation are essential
• Grid-connected power converters and FACTS equipment
• Large-scale renewable converters (wind converters, high-power rectifiers)
