ABB PM866A 3BSE076359R1 – Redundant CPU Processor Unit
Product Overview
Fully compatible with ABB AC 800M controller series, this unit supports redundant running mode to maintain uninterrupted system operation, suitable for power plants, chemical processing and manufacturing automation scenarios that require stable long-cycle operation.
Technical Specifications — PM866A 3BSE076359R1
| Parameter | Value |
|---|---|
| Product Model | PM866A 3BSE076359R1 |
| Manufacturer | ABB |
| Product Type | Redundant CPU Processor Unit |
| Power | 24V DC rated supply |
| Communication / Protocol | Profibus DP, Ethernet, Control Network protocol |
| Operating Temperature | 0°C to 60°C |
| Mounting | Backplane rack mounting |
| Dimensions (HxWxD) | Standard controller module size |
| Weight | Moderate industrial module weight |
| Typical Interfaces | Ethernet port, fieldbus interface, status indicator port |
| Compliance | CE certification, IEC industrial control standard |

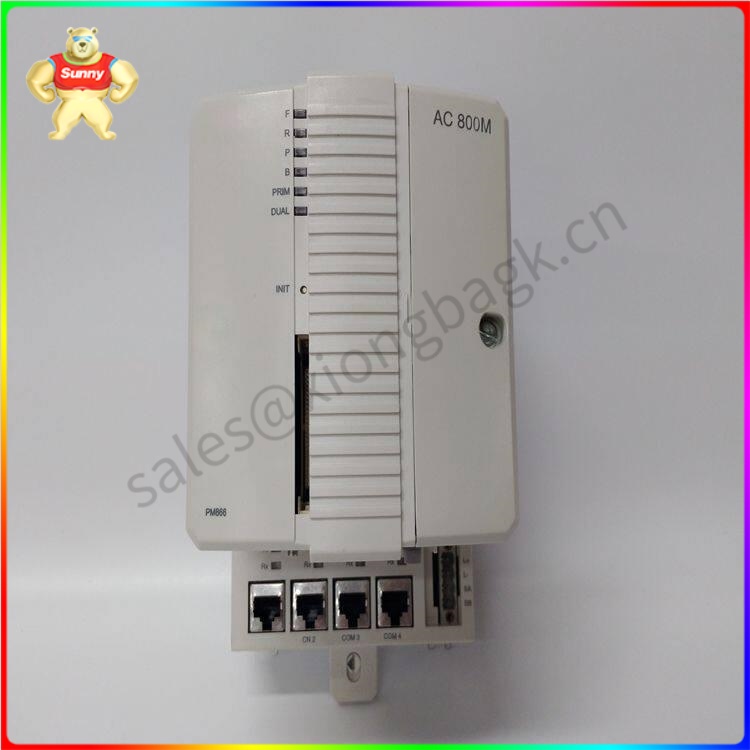

ABB PM866A 3BSE076359R1
Key Features and Benefits — PM866A 3BSE076359R1
- Supports hot standby redundancy, enabling seamless master-slave switching without interrupting onsite production processes.
- Strong logic computing and data processing capacity, adapting to complex interlock and sequence control tasks in large process systems.
- Integrated multiple communication interfaces for convenient connection with remote I/O, upper monitoring platforms and third-party devices.
- Built-in fault self-diagnosis function, feeding back running status and abnormal codes through panel indicators for quick onsite troubleshooting.
- Compact rack-mounted structure fits standard control cabinet layout, simplifying system expansion and module replacement work.
Related Models
- PM864A: Mid-range processor unit with basic computing performance for small and medium-scale automation projects.
- PM865A: Enhanced version with extended memory capacity for medium-complexity process control applications.
- PM867A: High-performance CPU module designed for large-scale DCS systems with massive data calculation demands.
- PM856: Cost-effective non-redundant controller suitable for non-critical automatic control occasions.
Installation and Maintenance — PM866A 3BSE076359R1
Install the processor unit onto the dedicated system backplane and lock the module in place following cabinet wiring specifications. Complete network and power wiring according to interface definition, then perform parameter configuration through supporting programming software. Daily maintenance only needs regular inspection of running indicators, connection tightness and cabinet ventilation environment, avoiding long-term exposure to dust and damp air.
Product Warranty — PM866A 3BSE076359R1
This controller module follows ABB standard industrial warranty policy, covering manufacturing defects within 12 months after delivery. Damage caused by wrong installation, overvoltage impact or operation beyond ambient temperature range is not included in warranty coverage. Official technical guidance is available for configuration replacement and system debugging.
Personally, I found that this processor unit runs steadily in long-term uninterrupted working conditions, and its redundant switching response is smooth enough to avoid any production fluctuation. It also matches most existing ABB control cabinet backplanes perfectly, making module replacement and project upgrade much less complicated for field engineers.
