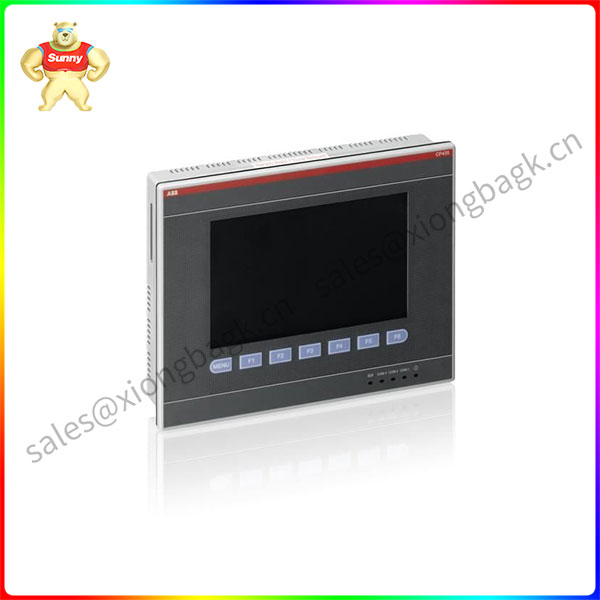

CP435T-ETH human machine interface (HMI)
Product Description
The CP435T-ETH is a human machine interface (HMI) from ABB that features a 7-inch TFT LCD and is water and dust resistant to IP65/NEMA 4X (indoor use only) standards. Here are some of the key parameters of the product:
Model: CP435T-ETH
Front panel dimensions: W x H x D 231.0 x 176.0 x 7.5mm
Installation depth: 45.8mm
Opening size: 220.8 x 165.8 mm
Front panel seal: IP 65/NEMA 4X (indoor use only)
Keyboard specifications: 1 “Menu” key and 6 user-defined function keys (F1-F6), pressure: 280 ± 50 G forces, life: over 1,000,000 activations
Weight: 1.2 kg
Communication port:
COM 1:9-pin female connector, RS232/RS485
COM 2:25-pin female connector, RS232/RS422/RS485
COM 3:9-pin female connector, RS422/RS485
Ethernet: Yes
USB host: 2 ports
USB device: one port
Flash memory: 8 MB
RAM: 16 MB
CPU: 32-bit RISC
CP435T-ETH
Product parameter
Battery powered memory: 512 KB
Data/Recipe: 512 KB
CF card port: Yes
Real-time clock: Yes (rechargeable lithium battery)
Display: Color TFT LCD, 64K color, 800 x 480 pixels, CCFT backlight life: approximately 50,000 hours at 25 °C
Display active area: Width x height 153.7 x 92.4 mm, can display 100 x 60 8 x 8 size characters
Display adjustment: via touch screen
Touch screen: Analog
Power supply: 24V DC ± 15%, less than 24W
Operating temperature: 0 ° to +50 °C
Storage temperature: -10 ° ~ +60 °C
Ambient humidity: 20-90%RH non-condensing
Vibration resistance: 0.5 mm displacement, 10-55 Hz, 2 hours in each X, Y and Z axis direction
Percussion resistance: 10 G, 11 ms 3 times per X, Y and Z axis direction
With its high reliability and flexibility, the product has been widely used in the field of industrial automation and process control.
Application field
Line control: Monitor and control equipment and processes on the line.
Process control: chemical, pharmaceutical, food and other process industry control.
Energy management: Monitoring and controlling energy consumption.
Building automation: HVAC systems, lighting control, etc.
Machine vision: Image processing and machine vision systems.
Power systems: Power monitoring and control.
Traffic system: traffic signal control and monitoring.
