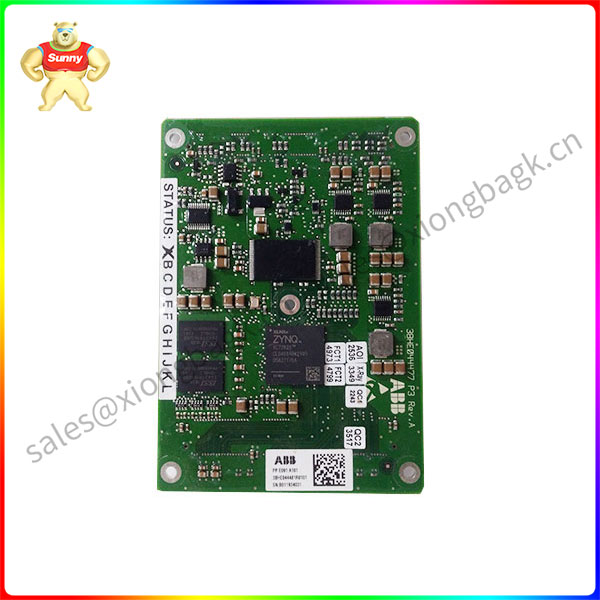

PPE091A101 Drive Processor Module | Xiongba spare parts

Origin:PPE091A101
Key words:PPE091A101 Drive Processor Module
Net weight (kg) : 0.28kg
Condition: 100% original
Warranty: 1 year
Packaging: 100% original
Delivery time: TNT, DHL, FEDEX, EMS, UPS
Time of payment: Telegraphic transfer
Delivery time: 3-5 days

The PPE091A101 control unit is the command and control center of the entire CPU. It consists of the instruction register IR (Instruction Register), instruction decoder ID (Instruction Decoder) and operation controller OC (Operation Controller). PPE091A101 is extremely important for coordinating the orderly work of the entire computer . According to the user’s pre-programmed program, it takes out each instruction from the memory in turn, puts it in the instruction register IR, and determines what operation should be performed through instruction decoding (analysis), and then operates the controller OC according to the determined timing. , to send micro-operation control signals to the corresponding components. The operation controller OC mainly includes control logic such as beat pulse generator, control matrix, clock pulse generator, reset circuit and start-stop circuit.
