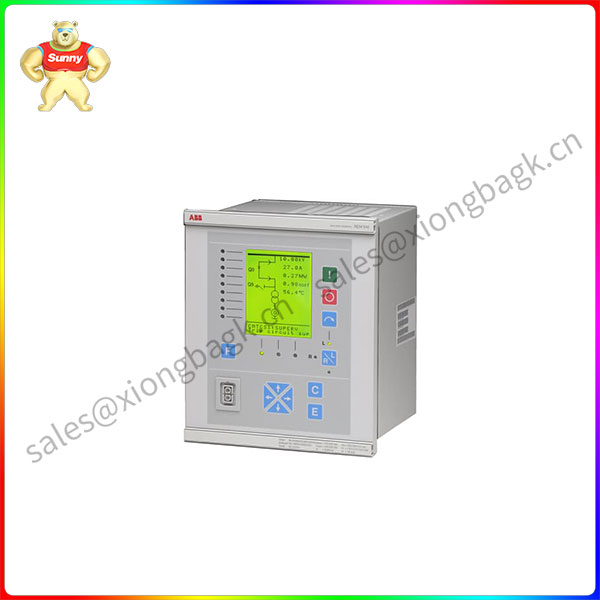

RET541AB231AAAA | Transformer Protection Relay

Description

Main Features and Advantages

The **RET541AB231AAAA** delivers comprehensive transformer protection with advanced differential algorithms that provide immunity to CT saturation during faults. Its adaptive harmonic restraint minimizes false trips during transformer energization while ensuring high-speed operation (<25ms) for internal faults. The relay features real-time temperature monitoring through patented thermal models that calculate winding hot-spot temperatures. With dual Ethernet ports supporting IEC 61850-8-1 Ed.2 and GOOSE messaging, it enables seamless integration into digital substations. Key advantages include automatic vector group compensation for complex transformer configurations, configurable disturbance recorder with 1ms resolution capturing 100 power cycles, and self-monitoring functions that detect hardware failures. The graphical LCD display simplifies commissioning with visual wiring diagrams and step-by-step setting guidance.

Application Fields

Designed for critical power infrastructure, the **RET541AB231AAAA** protects transformers ranging from 10MVA to 400MVA. Utility substations utilize it for generator step-up (GSU) transformers requiring ANSI 87T and ANSI 51N protection. Industrial facilities deploy it for furnace transformers with complex harmonic content needing secure restraint. Renewable energy applications include wind farm substation transformers requiring dynamic magnetizing inrush differentiation. Offshore platforms benefit from its corrosion-resistant construction for transformer protection in marine environments. Mining operations implement it for rectifier transformers with DC bias compensation needs. Additional applications include traction substations for railway electrification, data center substations requiring high availability, and smart grids with IEC 61850-compliant communication. Its extended temperature range makes it suitable for desert solar installations.

Related Products

Complementary ABB protection relays include the **RET670** for large power transformers and **REF615** feeder protection unit. The **REC670** provides bay control functionality for integrated substation automation. For busbar protection, the **REB500** offers high-impedance differential schemes. Communication options include the **FOX615** interface module for legacy serial integration. Upgrade paths include **RET541AB245AAAA** with enhanced cyber security features. Modern alternatives include the **Relion® 615 series** with IEC 61850-9-2 LE process bus support.

Installation and Maintenance

Installation preparation: Before mounting **RET541AB231AAAA**, verify CT polarity and perform ratio/tap calculations using ABB’s PST software. Maintain ≥75mm clearance for wiring and heat dissipation. Use twisted-pair shielded cables grounded at single point for analog inputs. Configuration procedure: Set transformer parameters (vector group, MVA, winding configuration) via front panel or PCM600 software. Maintenance requirements: Semi-annually test protection functions using secondary injection kits like **OTP 300**, validating trip times within 5% tolerance. Annually verify communication redundancy and GOOSE messaging integrity. Monitor relay health status via embedded diagnostics and replace backup batteries every 3 years. For disturbances, analyze COMTRADE files using ABB’s WaveWin software.

Product Guarantee

As ABB-certified partners, HONG KONG SAUL ELECTRICAL LIMITED provides 1-year comprehensive warranty on **RET541AB231AAAA**. Our protection engineers offer lifetime technical support including setting calculations and configuration file validation. Emergency replacement units ship within 24 hours globally with pre-configured templates. Calibration services include NIST-traceable metering accuracy reports. For legacy systems, we provide migration services from **RET521** platforms with disturbance record conversion. Commissioning packages include end-to-end testing with ABB test protocols.
