SYMAP®-BCG flexible microprocessor-based digital protection and control device

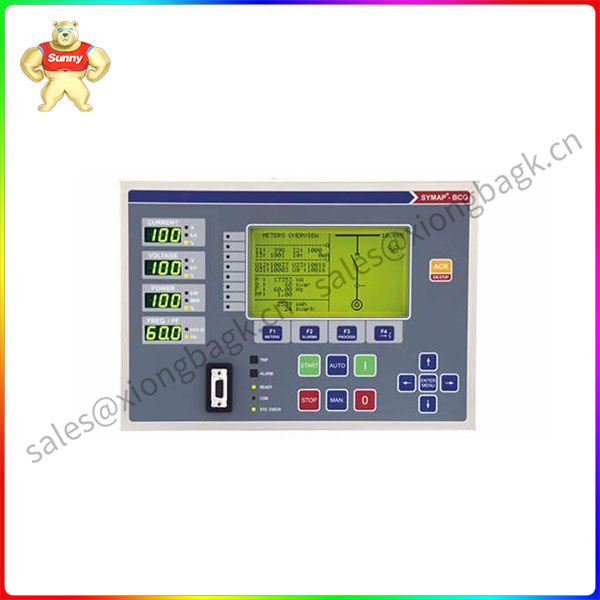

SYMAP®-BCG is a flexible microprocessor-based digital protection and control device manufactured by stuckeGROUP for low, medium and high voltage power systems. With integrated protection and human-machine interface functions, it is suitable for a variety of switchgear, providing an efficient and economical solution. Here are some of the key features and parameters of the product:

Model: SYMAP®-BCG
Function Description: The device provides complete protection and control functions for generators, motors (synchronous and asynchronous), transformers, power lines and distribution.
Protection functions: All protection functions can be activated at the same time without any restrictions.
Communication interface: Provides a variety of serial interfaces and data protocols for communication.
Application field:
Diesel engine
Gas engine
turbine
Expansion function: The expansion board can be connected to provide additional input and output channels, and the expansion board can be customized according to customer needs.
Physical dimensions: 279 x 192 x 146 mm
Weight: 5 kg
Power supply: 12-36 V DC, 36-72 V DC, 80-300 V DC or 60-230 V AC
Power consumption: less than 30 watts
Ambient conditions: Service temperature -20°C to +70°C, storage temperature -40°C to +70°C, transport temperature -40°C to +70°C, humidity less than 80%
Protection level: IP54 for front panel, IP10 for connection

SYMAP®-BCG equipment is widely used in the field of industrial automation and process control due to its high reliability and flexibility.

SYMAP-ECG

The device provides a variety of protection functions, including but not limited to overload protection, undervoltage protection, overcurrent protection, ground fault protection, reverse phase sequence protection, thermal overload protection, instantaneous current fault protection, etc. In addition, it provides control and interlocking functions such as indirect control, field interlocking, power management, etc.

SYMAP®-BCG also has a variety of communication protocols, including but not limited to Modbus (RTU), Profibus DP, IEC 60870-5-103, IEC 61850, CANBUS, etc., making it easy to integrate into various automation systems.

Applications include diesel engines, gas turbines, and turbines, especially in industrial environments where high reliability and flexibility are required.
