Description
Product details:

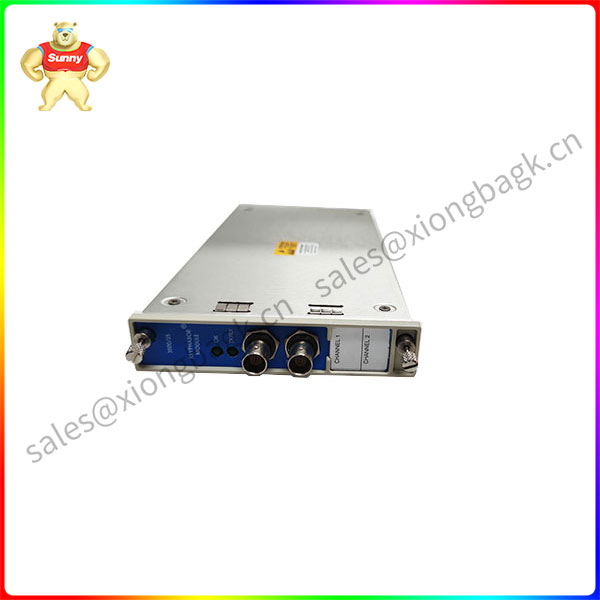

The 3500/25 Enhanced Keyphasor Module is a half-height, two-channel module used to provide Keyphasor signals to the monitor modules in a 3500 rack. The module receives input signals from proximity probes or magnetic pickups and converts the signals to digital Keyphasor signals that indicate when the Keyphasor mark on the shaft coincides with the Keyphasor transducer. The 3500 Machinery Protection System can accept up to four Keyphasor signals for normal configuration and up to eight Keyphasor signals in a paired configuration.
The Enhanced Keyphasor Module is an improved 3500 system module. It offers expanded Keyphasor signal processing capabilities over the previous design while maintaining complete downward-compatibility in terms of form, fit and function with existing Keyphasor modules for use in legacy systems. The Keyphasor module, PWA 125792-01, is completely replaced by the updated 149369-01 module.
3500/25-AA-BB-CC
A: Number of channels
01 Single half-height 2-channel Keyphasor card (order for 2-channels)
02 Two half-height 2-channel Keyphasor cards (order for 4-Channels)
B: Type of I/O Module
01 I/O module with Internal Terminations
02 I/O module with External Terminations
03 Internal Barrier I/O with Internal Terminations
04 Isolated I/O module with Internal Terminations (Designed for use with Magnetic Pickups)
05 Isolated I/O module with External Terminations (Designed for use with Magnetic Pickups)
C: Agency Approval Option
00 Not required
01 cNRTLus (Class 1, Div 2)
02 ATEX/IECEx/CSA (Class 1 Zone 2)
||
Industry Profile:
Bentley Nevada (Bently Nevada) 3500 series online monitoring and protection system. Monitoring and protection system for your unit equipment to provide continuous online status monitoring and protection. The Bentley 3500 system works well with the Bentley vibration sensor probe and can accept Bentley converging eddy current sensors, velocity acceleration sensors (e.g. 330400 330500) and various composite sensors. It is a world leader in detecting and preventing false trips and false trips of rotating machinery. More than 80,000 units installed worldwide provide automatic protection values through trip monitoring machines to prevent costly damage when needed. The 3500 system also protects your machines and processes against errant trips that can cause your operations to stop for no reason, resulting in costly outages or lost production. When connected to System 1* software, it also provides continuous condition monitoring information for active maintenance planning. The 3500 system combines the industry’s broadest selection of mechanical measurement parameters with software configurations for nearly all mechanical monitoring scenarios. The 3500 system fully complies with API670 requirements for this class of systems. It is the most powerful and flexible system in the traditional Bentley Nevada frame system, with a variety of features and advanced functions not available to other systems.
Main features of the product: Self-detection and fault-tolerant designs can be configured with multiple redundations, ranging from the addition of a second fully redundant power supply to a full triple modular redundancy (TMR) configuration for both selected channels and all channels, enabling the most mission-critical applications to be seamlessly integrated with the Bentley System1 condition monitoring and diagnostic analysis software platform. Communicate with plant control and automation systems through a communication gateway module designed to comply with API 670; The design conforms to the API618 standard for reciprocating compressors. DNV and Class NK certificates for offshore applications; Certified by the Canadian Standards Association (CSA), Factory Mutual (FM), GOST, ATEX and CE.
Xiamen Xiongba is a supplier of industrial parts
Xiamen Xiongba Electronic Commerce Co., Ltd. has a leading edge in “spare parts”.
We have a large inventory and surplus control system parts, parts
Control system hardware, we also announced a lot of new hardware and products
Support your existing control system or use the latest control technology. Stop production
“DCS system spare parts, PLC module spare parts” and accessories series, with powerful
Also we can help you find any PLC products you need, our strong
Price advantage. We offer a one-year warranty and have passed rigorous testing.
Price and minimum order quantity
The price is not stable, depending on quantity, quality, exchange rate, etc.
Please contact us for actual price before purchase. There are different minimum orders for different products.
Please let us know the quantity of your inquiry.
