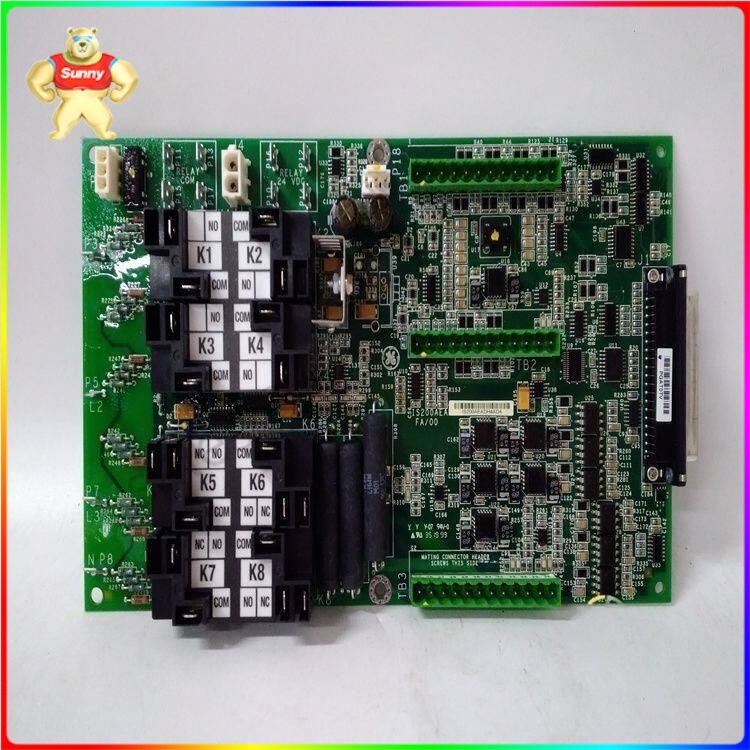

GE IS215WEPAH2B 109W3914P003 | Wind Turbine Pitch Control Circuit Board

$3,410.00

The IS215WEPAH2B 109W3914P003 is a core printed circuit board (PCB) developed by GE for its Mark VIe Speedtronic series, specifically designed for wind turbine pitch control applications. It primarily handles closed-loop control of wind turbine blade pitch angles, signal conditioning, and fault monitoring,

Warranty: 365 days
Delivery time: 1 week for in-stock items; no more than one month at the latest
Payment terms: 50% advance payment; full payment before delivery
Express delivery methods: FedEx, UPS, DHL
HS Code: 85389000
Add to quote
Category:

Description

GE IS215WEPAH2B 109W3914P003 – Wind Turbine Pitch Control Circuit Board

Product Overview

The IS215WEPAH2B 109W3914P003 is a core printed circuit board (PCB) developed by GE for its Mark VIe Speedtronic series, specifically designed for wind turbine pitch control applications. It primarily handles closed-loop control of wind turbine blade pitch angles, signal conditioning, and fault monitoring, addressing key industrial challenges like low pitch positioning accuracy, response lag, and poor adaptability to harsh environments. This module optimizes wind energy capture efficiency by adjusting blade angles in real time and protects the turbine from damage during extreme wind speeds, ensuring stable operation of variable-speed wind turbines in both onshore and offshore wind farms.

Technical Specifications — IS215WEPAH2B 109W3914P003

Parameter Value
Product Model IS215WEPAH2B 109W3914P003
Manufacturer GE (General Electric)
Product Type Printed Circuit Board (PCB) for Wind Turbine Pitch Control
Power 125 VDC
Communication / Protocol 3 COM ports, 1x 10BaseT/AUI Ethernet, IONet, UDH
Operating Temperature -40°C to +70°C
Mounting VME rack (13 or 21 slots)
Dimensions (HxWxD) Not specified (OEM standard)
Weight Not specified (OEM standard)
Typical Interfaces 2 discrete outputs, 9 relay outputs, 2x RS-485, 2x PWM control outputs
Compliance Industrial-grade, 三防 coating, surge protection
IS215WEPAH2B 109W3914P003

GE IS215WEPAH2B 109W3914P003

Key Features and Benefits — IS215WEPAH2B 109W3914P003

  • Precise pitch control: Equipped with high-resolution closed-loop angle adjustment, it stabilizes turbine speed and output power during wind speed fluctuations, maximizing energy capture.
  • Harsh environment adaptability: Wide temperature range and three-proof coating enable reliable operation in high-humidity, vibrating wind farm conditions.
  • Flexible communication: Multiple serial and Ethernet interfaces facilitate seamless integration with upper SCADA systems and on-site control networks, reducing integration complexity.
  • Redundancy compatibility: Supports simplex and triple modular redundancy, minimizing downtime; built-in overvoltage, overcurrent, and surge protection enhance durability in outdoor environments.

Related Models

  • IS215AEPCH2F: GE Mark VIe I/O control board, ideal for wind turbine auxiliary control systems with enhanced I/O expansion capability.
  • IS200WEORG1A: GE pitch system auxiliary PCB, designed to support signal transmission and fault diagnosis for wind turbine pitch mechanisms.
  • IS215WEPAH2BD: Enhanced version of the IS215WEPAH2B, with improved anti-interference performance for offshore wind turbine applications.
  • IS200EDCFG1BAA: GE exciter DC feedback board, compatible with wind turbine power generation systems for stable current feedback control.

Installation and Maintenance — IS215WEPAH2B 109W3914P003

Install the PCB in a compatible VME rack, ensuring proper connection to the daughterboard and compliance with ESD safety precautions—always wear anti-static gloves and hold the board by its edges to avoid damage. Regular maintenance includes visual inspections for dust or corrosion, functional verification tests in OEM system setups, and storing spare units in static-sensitive boxes when not in use. Refurbishment (replacing aging components, reflow soldering) can extend the board’s service life.

Product Warranty — IS215WEPAH2B 109W3914P003

Genuine GE units come with a 1-year base warranty covering manufacturing defects. Refurbished or third-party supplied units typically offer 2-3 years of warranty, with functional verification tests conducted before shipment. The warranty does not include labor or damage caused by improper handling, installation, or storage.
Personally, I found that this module’s adjustable frame rates (10ms, 20ms, 40ms) make it highly versatile, adapting easily to different wind turbine models—GE 1.5MW and 2.5MW turbines in particular. Its robust design also means fewer unplanned outages, a critical factor for remote wind farm operations where maintenance access is limited.
