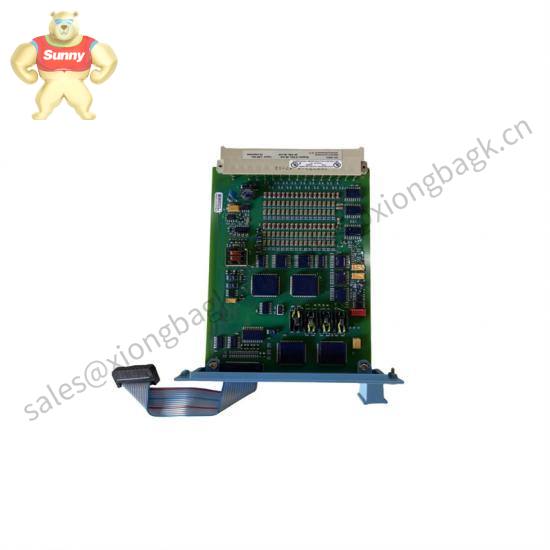

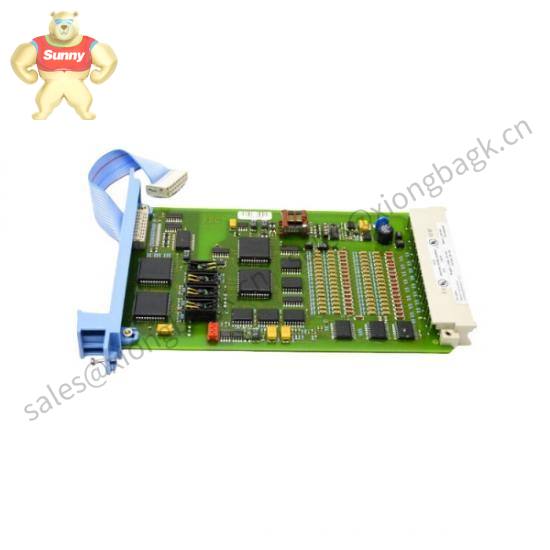

Honeywell SAI-1620M CCV1.4 – High-Density Safety Analog Input Module

If you’re working in hazardous environments like chemical plants or oil refineries, the Honeywell SAI-1620M CCV1.4 is a reliable solution for your safety-related analog input needs. This conformal-coated module is designed to seamlessly integrate with Honeywell’s Safety Manager systems, ensuring both safety and operational efficiency.

Key Features

• 16 Channels for Versatile Use: Divided into two groups of eight channels each, this module supports both safety-critical (like ESD systems) and non-safety applications, making it highly adaptable to different process requirements.
• Conformal Coating for Harsh Environments: The FC-type coating meets IEC 60664-3 Type A standards, offering protection against contamination in pollution grade 1 settings, which is ideal for dusty or humid installations.
• Signal Conversion Excellence: Converts field signals (0-20 mA DC or 4-20 mA DC) into precise 0-4 Vdc outputs compatible with downstream SAI-1620m modules, ensuring accurate data transmission across your control system.
• Redundant Power Supply Support: Compatible with external power sources such as the TPSU-2430 module, providing stable and uninterrupted operation even during power fluctuations.
• Robust Fault Protection: Each group of eight channels has a 315 mA slow-blow fuse, minimizing the risk of cascading failures caused by single-channel short circuits.

Technical Specifications

Related Products

For expanded functionality, consider these related models:

• TSHART-1620m: A 16-channel FTA with HART interface, suitable for advanced communication setups.
• TSAI-0410: A compact 4-channel FTA ideal for smaller-scale applications requiring fewer inputs.
• TPSU-2430: An external DC-DC converter that ensures redundant power supply and voltage monitoring.

Installation & Maintenance

The SAI-1620M CCV1.4 is designed for DIN rail installation, fitting securely onto TS32 or TS35×7.5 rails. Ensure proper ventilation within the cabinet to prevent overheating, especially when multiple modules are installed side-by-side. Wiring should comply with Class I, Division 2 hazardous area standards, and all connections must be double-checked for tightness before powering up.

Routine maintenance includes periodic calibration checks, cleaning dust from vents, and updating firmware if applicable. From my experience, keeping spare fuses on hand can save time during troubleshooting since individual channel faults are rare but possible.

Quality & Certifications

This module carries certifications such as CE, TUV, UL, CSA, and FM, ensuring compliance with global industrial safety standards. It also adheres to RoHS directives, making it environmentally friendly. Honeywell backs this product with a standard one-year warranty, though extended coverage options might be available upon request.
