Sale!

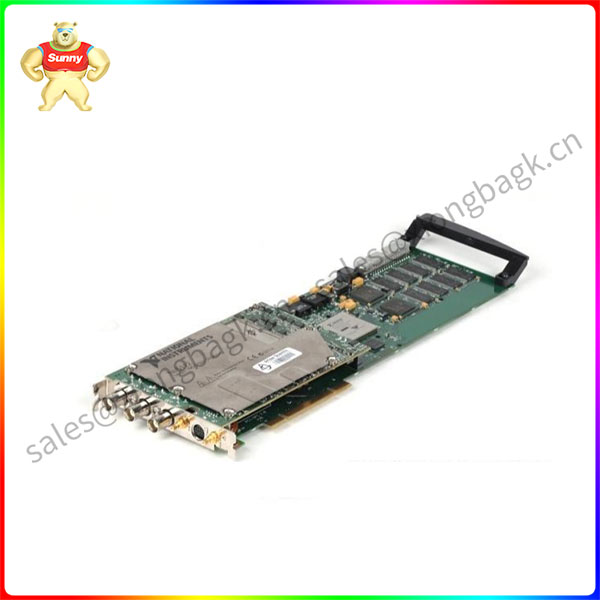

PCI-5122 14-bit PCI oscilloscope device PCI-5142

$1,600.00

PCI-5122 Before installing a module, ensure that the chassis is connected to the AC power supply. Ac power cables ground the case and protect it from electrical damage when you install the module
2. Power off the chassis.
3. Check whether the latch on the backplane of the chassis is bent or damaged. Do not install a module when the backplane is damaged.
4. Remove all the captive black plastic covers from the front panel of the module.
5. Determine the slots supported by the chassis. The symbols shown in the following figure indicate slot types

PCI-5122 PXI module can be placed in a PXI peripheral slot or in a PXI Express Hybrid peripheral slot. The PXI Express module can be placed in a PXI Express peripheral slot, a PXI Express hybrid peripheral slot, or a PXI Express system timing slot.
6. Touch the metal parts of the chassis to generate static electricity.
7. Ensure that the ejection handle is in the downward (unlocked) position.
8. Place the module edge into the module guide rails at the top and bottom of the chassis. The slide inserts the module into the slot until it is fully inserted.

Category: SKU: PCI-5122

Description

Please contact Sunny sales@xiongbagk.cn for the best price.

➱ sales manager: Sunny
➱ email mailto: sales@xiongbagk.cn
➱ Skype/WeChat: 18059884797
➱ phone/Whatsapp: + 86 18059884797
➱ QQ: 3095989363
➱ Website:www.sauldcs.com
