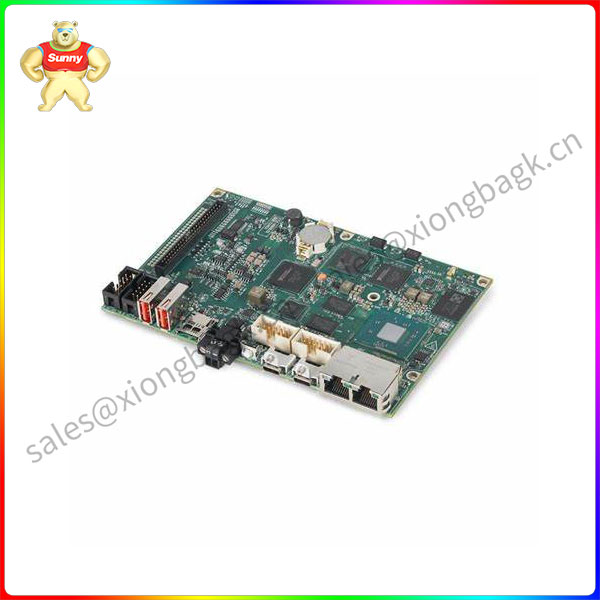

SBRIO-9628 single-board controller
Product Description
The sbRIO-9628 is a high-performance single-board controller from National Instruments (NI), part of the CompactRIO (cRIO) family. It integrates a real-time processor, a user-programmable FPGA (field Programmable Gate Array), and digital I/O on a single printed circuit board (PCB). Here are some of the key features and specifications of the product:
Processor: Intel Atom E3825 dual-core 1.33GHz
Memory: 1 GB DDR3L
Storage: 4 GB eMMC disk
FPGA: Xilinx Artix-7 100T, with 126,800 triggers and 63,400 6-input lookup tables
Analog input: 16 bits, 16 channels, maximum aggregate sampling rate 233 kS/s
Analog output: 16 bit, 4 channels, 100 kS/s/ch
Digital I/O: Four 5V capacity DIO ports
Network connection: Two Gigabit Ethernet connectors with support for TSN (time sensitive networking)
Communication ports: two RS-232 serial ports, one RS-485 port, and one CAN port
Other ports: microSDHC, USB Type-C host port, two USB Type-A host ports
Operating temperature range: -40°C to +85°C
Safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1
Operating system: NI Linux real-time operating system
The sbRIO-9628 is suitable for high-volume OEM applications that require flexibility, reliability and high performance, and can be embedded in a variety of industrial automation and control systems. Its compact design and comprehensive features make it suitable for applications ranging from simple control applications to complex automation and test systems
SBRIO-9628
Product parameter
Product model: sbRIO-9628
Processor: Intel Atom E3825 1.33GHz dual-core processor
Memory: 1 GB DDR3L
Storage: 4 GB eMMC storage disk
FPGA: Xilinx Artix-7 XC7A100T, including:
126,800 triggers
63,400 6-input lookup tables (6-LUTs)
240 DSP chips (18 × 25 multiplier)
4,860 kbits available block RAM
16 DMA channels
32 logical interrupts
Analog input:
16 16-bit single-ended or 8 differential channels
The maximum comprehensive sampling rate is 233 kS/s
Guarantee no missing code
Analog output:
Four 16-bit channels
100 kS/s/ch
Digital I/O:
96 single-ended or up to 45 differential, or up to 96 2.5V / 3.3V single-ended digital I/O lines
Four 5 V tolerance digital I/O ports
Network:
2 Gigabit Ethernet ports, supporting TSN (IEEE 802.1-AS-2011 IEEE 1588-2008)
Communication port:
2 RS-232 serial ports
One RS-485 port
One CAN port
Interface:
microSDHC slot
1 USB 2.0 device port
1 USB 3.1 Gen1 host USB Type-C port
Two USB 2.0 host USB Type-A ports
Processor: Intel Atom E3825 1.33GHz dual-core processor
Memory: 1 GB DDR3L
Storage: 4 GB eMMC storage disk
FPGA: Xilinx Artix-7 XC7A100T, including:
126,800 triggers
63,400 6-input lookup tables (6-LUTs)
240 DSP chips (18 × 25 multiplier)
4,860 kbits available block RAM
16 DMA channels
32 logical interrupts
Analog input:
16 16-bit single-ended or 8 differential channels
The maximum comprehensive sampling rate is 233 kS/s
Guarantee no missing code
Analog output:
Four 16-bit channels
100 kS/s/ch
Digital I/O:
96 single-ended or up to 45 differential, or up to 96 2.5V / 3.3V single-ended digital I/O lines
Four 5 V tolerance digital I/O ports
Network:
2 Gigabit Ethernet ports, supporting TSN (IEEE 802.1-AS-2011 IEEE 1588-2008)
Communication port:
2 RS-232 serial ports
One RS-485 port
One CAN port
Interface:
microSDHC slot
1 USB 2.0 device port
1 USB 3.1 Gen1 host USB Type-C port
Two USB 2.0 host USB Type-A ports
Application field
The sbRIO-9628 is a high-performance, versatile single-board controller manufactured by National Instruments for a variety of applications:
Industrial automation: The sbRIO-9628 can be used to achieve precise control and monitoring of industrial machinery and production lines.
Research and Development: In a research environment, the controller can be used for rapid prototyping and algorithm development.
Test and Measurement: With its analog and digital I/O capabilities, the sbRIO-9628 can be used to build complex test and measurement systems.
OEM Integration: Due to its modularity and customizability, the sbRIO-9628 can be integrated into OEM products for application-specific automation and control.
Data acquisition: The sbRIO-9628 supports data acquisition through various interfaces and is suitable for applications requiring high-speed data acquisition.
Real-time control: Equipped with the NI Linux real-time operating system, the sbRIO-9628 can handle real-time control tasks to ensure the certainty and timeliness of tasks.
sbRIO-9628 features include, but are not limited to:
Integrated real-time processor and user programmable FPGA
High-density RIO Mezzanine Card (RMC) connector for additional I/O modules
A wide range of communication interfaces including Gigabit Ethernet, RS-232, RS-485 and CAN
Supports two Gigabit Ethernet ports for time-sensitive networking (TSN)
Flexibility, reliability and high performance for high-volume OEM applications.
