Description
| Technical Specifications | |
|---|---|

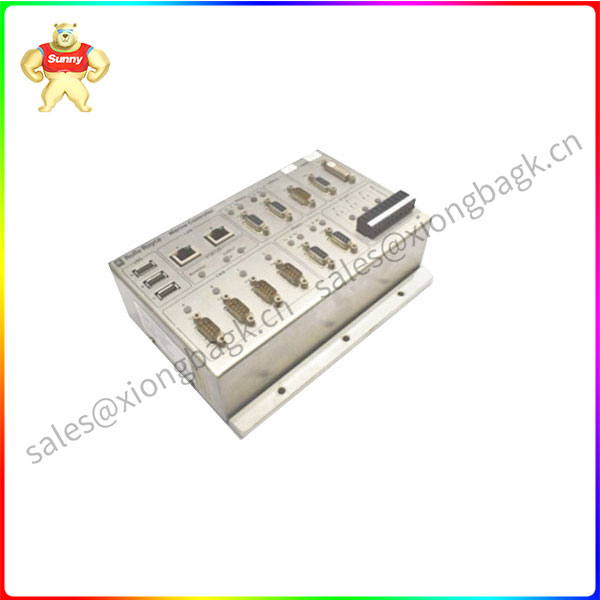

| Product Model | **H1111.0203** |
| Manufacturer | Rolls-Royce |
| Product Type | Gas Turbine Control Module |
| Input Voltage | 24 VDC ±10% (redundant inputs) |
| Operating Temp | -40°C to +85°C (ambient) |
| Processor | Dual-core PowerPC @ 1.2 GHz |
| I/O Channels | 16× analog (0-10V/4-20mA), 24× digital |
| Communication | Dual CAN bus, RS-485, Ethernet/IP |
| Speed Control | 0-100% Nf with ±0.02% accuracy |
| Vibration Rating | 5g (10-2000 Hz) |
| Update Rate | 10 ms control loop |
| Enclosure | IP66 extruded aluminum |
| Compliance | Lloyd’s Register, DNV-GL, API 616 |
| Warranty | 1 year |
Main Features and Advantages
The **H1111.0203** delivers mission-critical control for Rolls-Royce industrial gas turbines with 10ms cycle time precision. Its patented speed governor maintains turbine RPM within ±0.02% under transient loads, preventing overshoots through adaptive gain scheduling. Dual-redundant processors execute fault-tolerant control algorithms validated to SIL 2 safety standards. Military-grade connectors with gold-plated contacts ensure signal integrity in high-vibration environments (5g rating). Hot-swappable I/O modules allow field replacement without turbine shutdown, while MIL-STD-704F power conditioning protects against electrical transients. Key advantages include predictive combustion algorithms reducing NOx by 12%, automated bumpless transfers during generator synchronization, and encrypted ethernet protocols for cyber-secure remote monitoring. Conformal coating protects against salt fog and chemical exposure.
Application Fields
The **H1111.0203** governs Rolls-Royce turbine packages across critical infrastructure applications. Power generation plants deploy it for primary frequency control during grid events, maintaining 50/60Hz synchronization within ±0.1Hz. Marine installations utilize its MIL-S-901 shock certification for naval propulsion control in destroyers and carriers. Oil & gas platforms rely on its ATEX-compliant design for compressor drive control in Zone 1 hazardous areas. Pipeline compressor stations implement its anti-surge algorithms for centrifugal compressor protection. Additional applications include LNG liquefaction trains requiring precise temperature control, district heating cogeneration plants, and emergency power systems for data centers where <10-second start capability ensures uninterrupted operations. The module’s IP66 rating makes it suitable for desert and offshore deployments.
Related Products
Complementary Rolls-Royce components include the **H1294.0001** Fuel Metering Valve and **H1055.0102** IGVS (Inlet Guide Vane System). The **H2220.3001** overspeed module provides triple-redundant protection. Upgrade paths include the **H1111.0210** with predictive maintenance APIs. Legacy systems can retrofit **H1111.0100** series modules. Woodward equivalents include **9907-230** control systems while Siemens options feature **S7-417T** turbomachinery PLCs. Essential peripherals: **H3100.0050** vibration sensors and **H4005.0200** flame detectors.
Installation and Maintenance
Installation protocol: Mount **H1111.0203** vertically in vibration-isolated enclosures per R-R SK 0254 guidelines. Maintain ≥75mm clearance for thermal dissipation and route signal cables away from power lines using segregated trays. Prior to power-up, verify grounding impedance ≤10mΩ using micro-ohmmeter. Maintenance regime: Perform quarterly I/O calibration with R-R tool **TK-4200** and simulate 32 load scenarios annually using **VisionXpert™** software. Replace cooling fan filters every 6 months in dusty environments. Validate firmware hash signatures before updates and maintain cryptographic key backups. During planned outages, perform dielectric tests on control wiring (>100MΩ isolation). Retorque terminal blocks to 1.2N·m annually.
Product Guarantee
As Rolls-Royce certified distributors, we provide 12-month warranty for **H1111.0203**, covering replacement units with 48-hour global shipping. Our turbine specialists offer lifetime technical support including predictive algorithm tuning and obsolescence management. Commissioning services include load rejection testing validated against API 616 standards. For legacy systems, we provide migration kits maintaining I/O point mapping. Calibration certificates include Lloyd’s Register traceability. Customized maintenance contracts feature thermal imaging scans and cybersecurity vulnerability assessments with Rolls-Royce **VisionXpert™** diagnostics.
Please contact Sunny sales@xiongbagk.cn for the best price.
