Description
Product details:
Advantages:
• Sensorless vector control
• Linear V/f curve
• Output frequency :0hz to 400hz
• Overload capability: 200% in 5 seconds, 150% in 60 seconds
• Continuously adjustable pulse frequency from 3 KHZ to 16 KHZ
Rexroth indrdrive FCS01.1E-W0011-A-04-NNBV is a new family of powerful converters for open loop applications. FCS01.1E-W0011-A-04-NNBV In a very compact book format, four standard converters cover the full output range from 0.25kW to 7.5kW. IndraDrive Fc sets a new standard in its class with its wide range of features and ease of installation, debugging and operation.

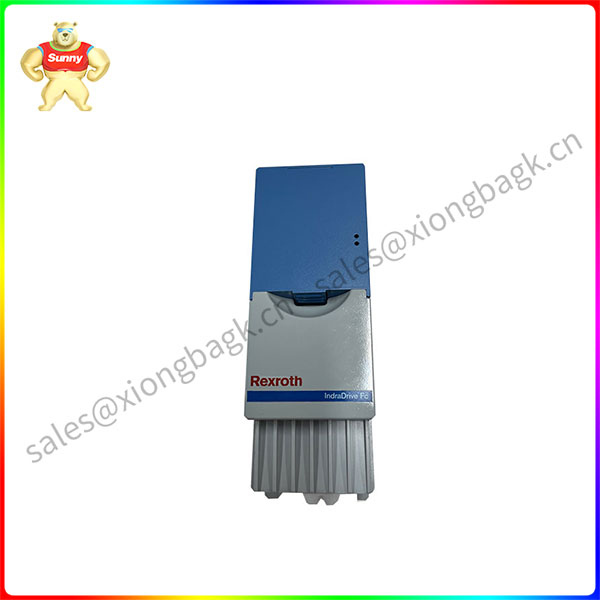

FCS01.1E-W0011-A-04-NNBV
Bosch Rexroth IndraDrive Fc AC inverter for 2.2kW (3.0HP) 400V three-phase motor with VxF or sensorless vector control up to 5.5A. Standard AC induction motor 400V three-phase input setup is simple.
Keyboard free – See Linked Products below for keyboard options.
Size B: 73mm W x 153mm D x 226mm H (260mm h when fitted with included wall mounting bracket)IP20.
Weight :1.8 kg (approximate value).
Overload – 150% x 60 s, 200% x 3.5 s
Speed control range -0-400 Hz.
Brake – Minimum 130 ohm External Resistor (not provided)- See Resistor options linked below or use the “Which Resistor” button on this page.
Features – 2 analog/digital inputs, 5 digital inputs, 1 analog output, 2 relay contact sets, RS232, RS485.
DC Bus Terminal for fuel-efficient bus applications.
Programming is available from a PC via “IndraWorks” software and PC cable – see Linked Products below.
