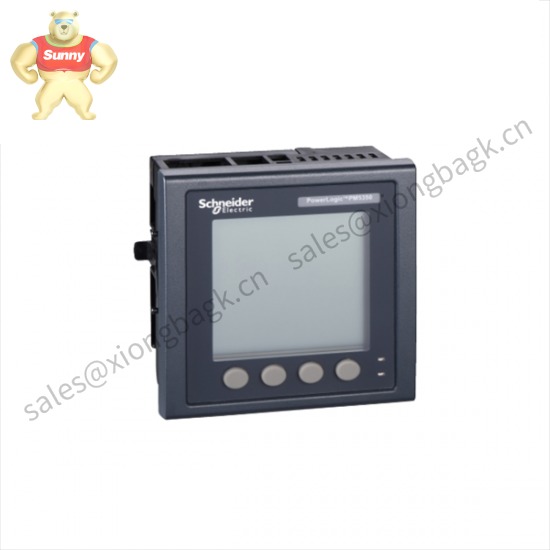

Schneider Electric EasyLogic PM2210 (METSEPM2210) Power & Energy Meter – Sub-billing, monitoring, and THD in a 96×96 panel format

Key Features

• Accurate energy metering – Active energy Class 1 (IEC 62053‑21) and reactive energy Class 1 (IEC 62053‑24) for reliable sub‑billing.
• THD visibility – Measures total harmonic distortion, helping identify distortion-driven losses and overheating risks.
• Wide-range control power – 44–277 V AC/DC ±10% helps standardize spares across panels.
• Universal voltage/current inputs – 20–277 V L‑N, 35–480 V L‑L; works with 1 A / 5 A CTs (5–6000 mA measurement range).
• RS‑485 Modbus RTU – Simple integration with BMS/SCADA/EMS; port enable/disable enhances security in many cases.
• Pulse output – 1 digital pulse output (20 ms) with scalable counts per kWh/kVAh/kVARh for legacy logging systems.
• Clear UI – Backlit 128×128 monochrome LCD with 4-key navigation; RUN and energy pulse LEDs for quick status checks.
• 96×96 mm panel mount – Clip-on frame, IP54 front when installed correctly; vertical orientation recommended.
• Green Premium – RoHS/REACH compliant, mercury‑free; UL94 V‑0 fire rating for the enclosure materials.

Technical Specifications

Related or Supporting Products

• METSEPM2210D – Same platform as PM2210 with added demand-related functions (commonly chosen where demand tracking is required).
• METSEPM2220 – Adds more advanced parameters and options; a step up if you need deeper diagnostic detail.
• METSEPM2230 – Higher model with extended measurement set; useful for richer power quality visibility.
• METSEIP65OP96X96FF – Front IP65 upgrade kit, helpful in dusty or washdown areas.
• C10003577 / C10003279 – Fixing clips for different enclosure types (select per panel IP requirement).
• 1 A / 5 A CTs – Use appropriately rated external current transformers; match burden and ratio to the installation.

Installation & Maintenance

• Panel mounting – 96×96 mm front; typical cut‑out 92×92 mm; secure with clip‑on frame. Keep front gasket even to maintain IP54.
• Environment – Install in a clean, dry enclosure; allow airflow around the meter. Avoid direct sunlight on the LCD where possible.
• Wiring – Use shielded twisted pair for RS‑485; 120 Ω termination at the bus ends; follow A/B polarity. Observe CT polarity (K/L) and short CT secondaries before servicing.
• Protection – Feed control power through a suitably rated miniature fuse or breaker; earth per local electrical codes.
• Configuration – Set CT/VT ratios, energy pulse scaling, Modbus address and baud rate during commissioning. You might notice communication becomes much more stable when all devices share the same parity and stop bits.
• Routine care – Wipe the LCD with a soft dry cloth; review logs quarterly; verify firmware revisions during annual maintenance windows; check terminal tightness after thermal cycles.

Quality & Certifications

• Safety: IEC 61010‑1, UL 61010‑1; designed for CAT III applications within specified ranges.
• Compliance: CE, cULus, RCM, EAC, C‑Tick.
• Environmental: RoHS/REACH compliant, mercury‑free; UL94 V‑0 plastics; Schneider Electric Green Premium.
• Warranty: 365 days from delivery.

Note on customs classification: HS Code 90283010 is a commonly used reference for electricity measuring instruments. Classification can vary by country; final coding should follow local customs rulings.
