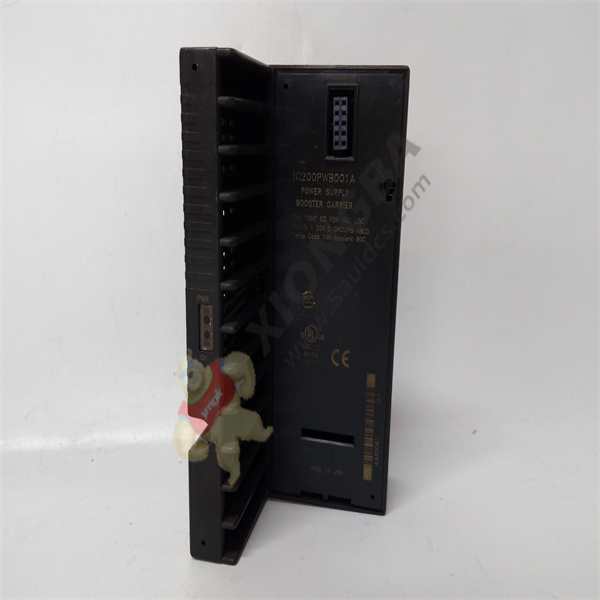

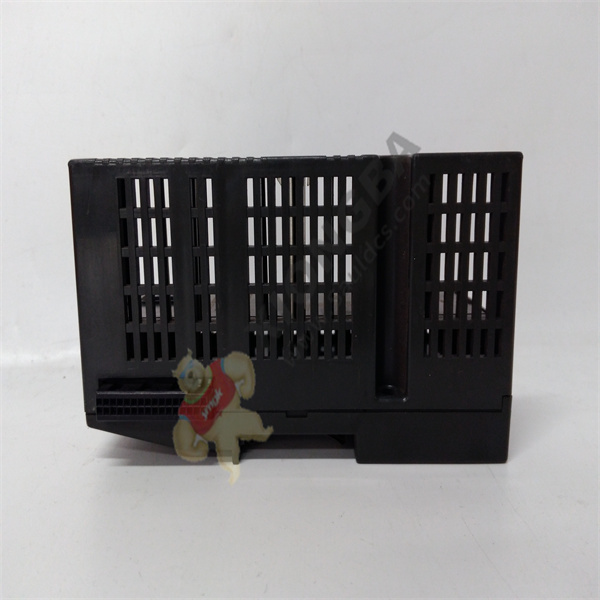

IC200PWB001A GE controller



The product description



GE Fanuc IC200PWB001 Power boost brackets are used to install additional power supplies in series with other module brackets in the system. The power supply mounted on the booster bracket supplies power to each I/O module located to the right or above the unit until the next booster power supply in the same system. NIU or DC on the CPU or



The AC power supply as well as the power supply on the booster bracket should use an equivalent external power supply. The GE Fanuc IC200PWB001 power booster bracket has two leds, one is a “PWR” LED that shows the functional status of the connected booster power and the other is an “OK” LED that shows NIU or CPU and the connected litres



The functional state of the press power supply.



GE Fanuc IC200PWB001 Power booster bracket shall be properly mounted on 7.5 mm x 35 mm DIN guide rails. To ensure that the DIN guide provides EMC protection, it should be grounded and have a conductive corrosion resistant surface. To provide resistance to mechanical shock and vibration, IC200PWB001 electrical



The source booster carrier shall be mounted on the panel. The power booster measures 66.8 mm (2.63 in)x 133.4 mm (5.25 in)x 70 mm (2.75 in). When removing the IC200PWB001 power booster bracket, the user will need to remove it from the DIN rail by removing the screws used to attach it.



If booster brackets are mounted between other bracket units, the user will need to remove them because matching connectors are located on the side. To properly remove the booster bracket, the user pulls the DIN rail lock sheet outward and tilts it.

controller

The controller refers to the main command device that changes the wiring of the main circuit or control circuit and changes the resistance value in the circuit to control the starting, speed regulation, braking and reverse of the motor in a predetermined order. It is composed of program counter, instruction register, instruction decoder, timing generator and operation controller. It is the “decision-making mechanism” that issues commands, that is, it completes the operation of coordinating and directing the whole computer system
