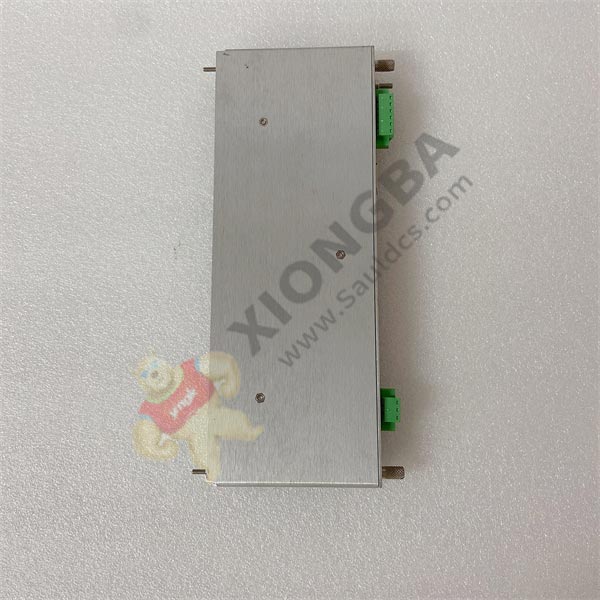

Bently Nevada 146031-01 Transient Data Interface Module 136188-01





Brand: Bently Nevada



P/ n:146031-01



Transient data interface I/O module



Origin: United States



Xiamen Xiongba provides DCS/PLC 146031-01, Xiamen Xiongba Shan Ni for your quotation, and provide one-year warranty service.



146031-01 High quality affordable models.



146031-01 Bently Nevada Transient Data interface I/O module

TDI comes with built-in static data capture capabilities. However, the channel Enable disk is an optional device that also enables the TDI to record dynamic and high-resolution transient data. The 3500 rack contains TDI’s communication processing capabilities.

The 3500/22M series Transient Data interface connects the 3500 monitoring System to Bently Nevada’s System 1 mechanical management software. TDI combines the functionality of the 3500/20 framework interface module with the data collection capabilities of communication processors such as TDXnet.

The TDI is installed in the edge slots of the 3500 rack along with the M series displays (3500/40M, 3500/42M, etc.). Steady state and transient waveform data are continuously captured and transmitted to the host software over Ethernet links. By default, TDI captures static data, but installing an additional channel enabled disk also allows you to record dynamic or transient data.

In addition to implementing communication processor capabilities within the 3500 framework, TDI improves on previous communication processors in several ways.

TDI performs certain functions that are shared by the entire rack; However, TDI is not part of the critical monitoring channel and has no impact on the correct and normal performance of the overall monitoring system. Each rack requires a TDI or RIM. The TDI occupies only one slot in the rack and is always at Slo T 1. (Next to the power supply).

The 3500 system requires a TMR version of TDI for triple modular redundancy (TMR) applications. In addition to all regular TDI functions, the TMR TDI performs “monitor channel comparisons”. The monitoring vote is performed by the 3500 TMR configuration using the configuration provided in the Monitor options. In this way, the TMR TDI compares the output of the three redundant monitors in real time.

If TMR determines that the information from one of the monitors is no longer equal to the information from the other two monitors (within a specified percentage), it marks the monitor as an error and records an event in the system event list.

module

A module, also known as a component, is a collection of program statements (a collection of program code and data structures) that can be individually named and independently complete certain functions. It has two basic characteristics: external characteristics and internal characteristics. External features refer to the interface of the module connected with the external environment (that is, the way other modules or programs call the module, including input and output parameters, referenced global variables) and the functions of the module; Internal characteristics refer to the characteristics of the internal environment of a module (that is, the local data and program code of the module)







Name: Xiamen xiongba e-commerce Co., Ltd.
Address: Room 2009, Vanke creative center, No. 1733, Luling Road, Siming District, Xiamen
Contact: 18059884797  Sunny  (same number on WeChat)
Contact QQ: 3095989363
Contact email: sales@xiongbagk.cn
★First-hand supply, no middlemen make the difference!
★As long as it is what you want, I can help you find it, and the price is favorable!
★According to the standard of the manufacturer of the brand, guarantee after-sales service, all products.
One-year warranty, etc.

*******************************************************************************************************************************************************************
Market with quality!
Create a brand with integrity!
Lower than the industry’s ultra-low price!
Welcome to inquire, we will give you high-quality service!
As long as it is what you want, I can help you find it, and the price is favorable!
The following are our company’s advantageous products (the most used daily) and the uncommon ones that are not listed, but they are all done) Welcome to your consultation!
Spot supply and sufficient stock

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy
Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
