Description

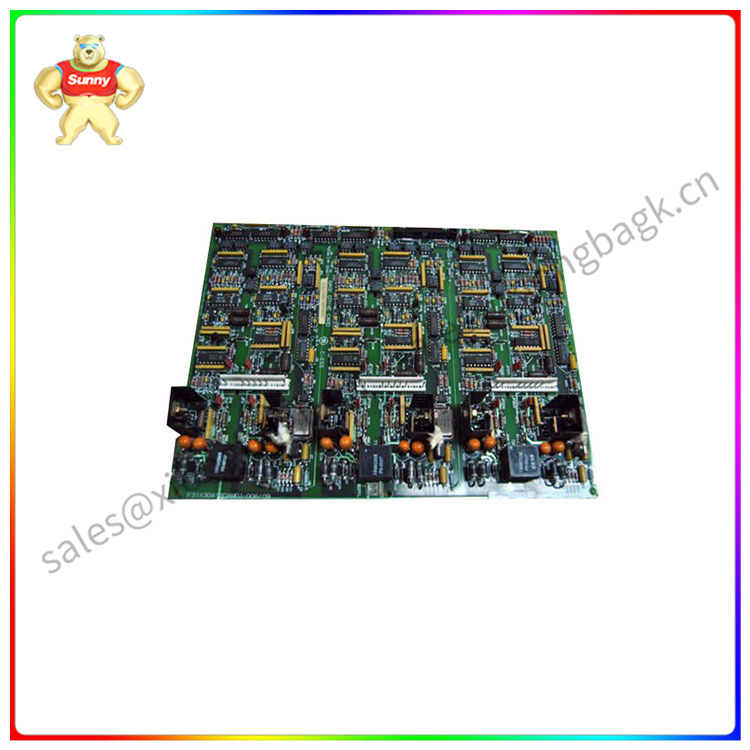

The 531X100CCHARM1 is a PCB (printed circuit board) fabricated by GE. This board component is designed as part of GE’s general purpose drive systems, such as the DC-300 drive. These drives were typically used to complete a wide variety of tasks within industrial settings.
The 531X100CCHARM1 functions as a Control Board. It carries codes like 4285, 004/0, 005/0, FR00/0, and the secondary board number of F31X100CCHBCG1. The board is drilled in each corner to allow for mounting options. Additional factory made holes are pla
ced elsewhere. The 531X100CCHARM1 can accept up to two auxiliary boards. It has five male vertical pin cable connectors and two header connectors to allow for communication with auxiliaries, other boards, and off-board components.
Other components on the 531X100CCHARM1 include a push-button switch and a toggle switch, five potentiometers, transistors, over twenty jumper switches, and a single green LED indicator. The board has over twenty integrated circuits designed for various operations; these are typically marked with their original part numbers for quick identification. The board uses diodes, capacitors made of polyester vinyl, electrolytic material, and ceramic, resistors of metal film, and a resistor network array.
More information regarding the 531X100CCHARM1 may be found through publications originally provided by General Electric. This includes data sheets, series guides, or drive manuals. Detailed installation procedures for this board will be available through these sources. Only qualified technicians should install or maintain this equipment. Please follow all handling and safety procedures as recommended by the original equipment manufacturer.
