Description
Product details:

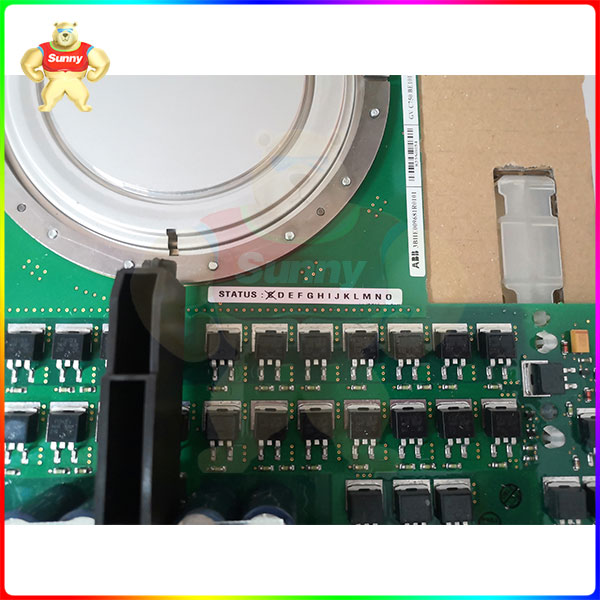

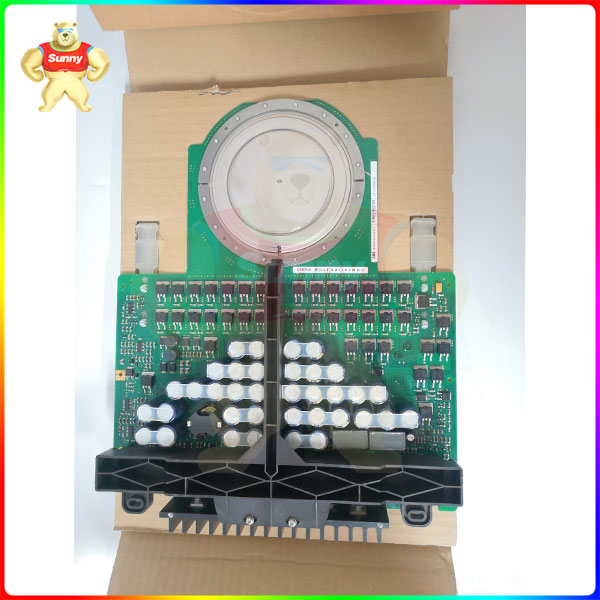

5SHY4045L0003 3BHB021400 3BHE019719R0101 GVC736BE101
An IGCT is similar to a GTO in that it is also a four-layer, three-terminal device. The inside of a GCT is composed of thousands of GCTS. The anode and gate are shared, while the cathode is connected in parallel. The important difference between IGCT anode and GTO is that the inner side of IGCT anode has more buffer layer, and the transparent (penetrable) anode replaces the short-circuit anode of GTO. The on-off mechanism is exactly the same as that of GTO, but the off-off mechanism is completely different from that of GTO. In the off-off process of IGCT, GCT can switch from on-off state to blocking state instantly, and then turn into a pnp transistor, so it has no external du/dt limitation. However, the GTO must pass through an intermediate unstable state that is neither on nor off (i.e., “GTO zone “), so the GTO needs a large absorbing circuit to suppress the change rate du/dt of the reapplied voltage. The equivalent circuit of IGCT in the blocked state can be considered as a base-open, low-gain pnp transistor in series with a grid power supply.
IGCT trigger power is small, can trigger and condition monitoring circuit and IGCT tube core into a whole, through two optical fibers input trigger signal, output working state signal. IGCT combines the advantages of GTO technology with that of modern power transistor IGBT. The key technology of simple and reliable series of high-power turn-off devices makes IGCT have no real rivals in the field of medium and high voltage and in the field of high-power applications of 0.5MVA ~ 100MVA.
5SHY4045L0003 3BHB021400 3BHE019719R0101 GVC736BE101
The advantages of low loss and fast switching ensure that IGCT can be used reliably and efficiently in 300 kVA ~ 10MVA converters without series or parallel operation. In series, the inverter power can be extended to 100MVA. Although the high power IGBT module has some excellent characteristics, such as active control of di/dt and dv/dt, active clamping, easy to achieve short circuit current protection and active protection. However, due to the defects of high conduction loss, open circuit caused by damage and no long-term reliable operation data, the practical application of high power IGBT module in high power low frequency converter is limited. Therefore, IGCT will become the preferred power device of high power and high voltage inverter.
Recommended model:
ICS TRIPLEX T8403C 8 channel digital input |
ICS TRIPLEX T8461C 16 channel digital output module |
TEWS TPMC871-10 Power supply module |
IS200TSVOH2B GE MKVI control circuit board |
TRICONEX 3721 Control system module |
ABB 5SHY4045L0003 3BHB021400 The gate can shut off the thyristor |
CAI04 ABB I/O/DO module |
CI871K01 3BSE056767R1 ABB Communication module |
ABB DI04 SD series input and output |
DO810 3BSE008510R1 ABB I/O terminal board |
3BHE022294R0103 ABB static excitation system |
GFD233A 3BHE022294R0103 ABB Static excitation system controller |
ABB KP2500 Silicon controlled rectifier |
