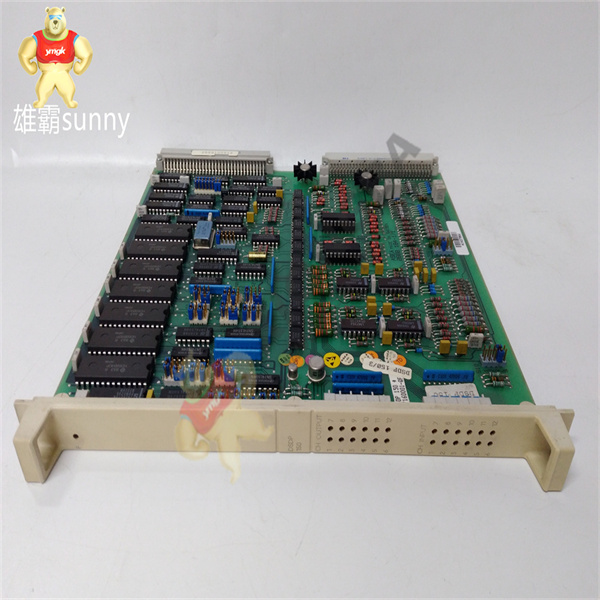

DSDP140A Robot drive power supply

Description

Our main DCS system accessories, PLC system accessories. Main Business: Bentley, ABB, AB,
TRICONEX Invision, Woodward, Foxboro, Westinghouse
Emerson Westinghouse, RELIANCE, Motorola, MOTOROLA, GE Fanuc, YASKAWA,
bosch rexroth, Kollmorgen, MOORE, YOKOGAWA,
Rexroth and other major brand DCS system accessories, robot system accessories, large servo system spare parts.
ABB’s Robotics and Motion Control Division offers a wide range of products and services to help customers improve productivity,
Save energy, while improving product quality and production efficiency. The products we provide mainly include drives, motors,
The generator.
ABB Industrial Automation provides integrated solutions and services for control systems, plant optimization, and special industry applications.
To help process industry clients improve profitability, capital productivity, and risk management in their business requirements
And responsibility. The Industrial Automation Division is involved in the industrial fields, mainly including oil and gas, power, chemicals and pharmaceuticals
, pulp and paper, non-ferrous metals, cement, mining, Marine and turbocharging.

DSDP140A Robot drive power supply

DSDP140A Select the motor according to the rated parameter table in the Technical Data-chapter. If the default load period cannot be applied,

You can use the DriveSize PC tool.

2. Check that the rating of the motor is within the range allowed by the transmission control program:

The rated voltage of the motor is located in 1/2 of the transmission unit.. 2. Within the UN;

● The rated current of the motor is located in 1/6 of the transmission unit.. 2.12 In nd (DTC Control mode) or

0… 2. Inside l2nd (scalar control mode). The control mode is selected by the transmission parameters.

3. Check the rated voltage of the motor for the needs of the application:

● If the drive is equipped with a diode input bridge (non-renewable drive) and operates in electric mode (e.g

Brake), the motor voltage should be selected according to the AC voltage input to the drive.

● If the intermediate DC circuit voltage of the transmission will be higher than normal due to brake resistance or the use of renewable

IGBT line side inverter control program (parameter optional function) should be based on the “transmission unit equivalent AC power

Source voltage “Select the rated voltage of the motor.

The equivalent AC power source voltage of the transmission unit is calculated as follows:

UACeq = UDcmax/1.35

Here it is:

UACeq = Equivalent AC power source voltage of the transmission unit:

UbCmax = the maximum intermediate DC circuit voltage of the transmission unit.
