Description
Product details:
ATA memory card: | Supported |
Product Type: | PanelView 1000 Operator Terminal |
Product Family: | PanelView Standard |
Manufacturer: | Rockwell Automation |
Display Type: | Color active matrix TFT |
Display Area: | 211 x 158 mm (8.3 x 6.2 in.) |
Resolution: | 640 x 480 |
Backlight: | 50,000 hr 1/2 life at 25 °C (77 °F) |
Keypad function keys: | 16 function keys (F1…F16) |
Application memory: | 310KB application runtime; 1008 KB nonvolatile memory (application objects plus text and bitmaps) |
Communication ports: | RS232 (DH485); RS232 (Printer) |
Input Voltage range: | 85…264V AC, 47…63 Hz |
Accessories: | function key legend inserts; Anti-glare overlays; backlight replacements; Real-time clock replacements; Mounting hardware; Power supply and terminal block; interface modules; |

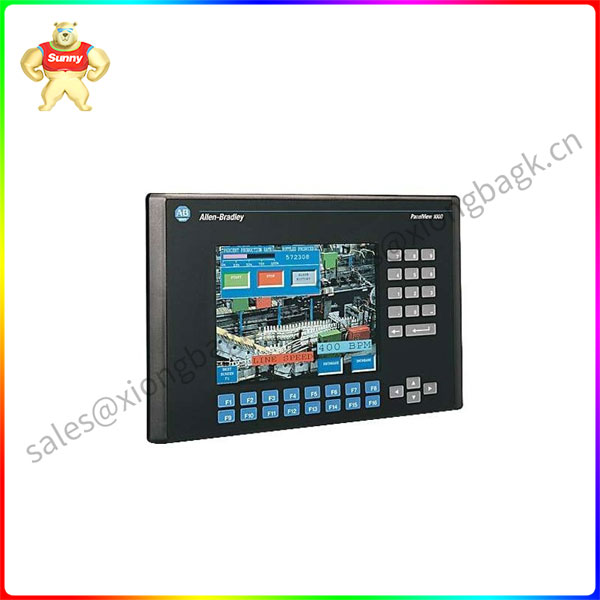

The 2711-K10C9 terminal is an Allen-Bradley manufactured PanelView display terminal. It belongs to the 1000 series of display terminals manufactured by Allen-Bradley. It is extensively used as an interface with machinery. The display is a 10.4-inch panel with an integrated keypad. The keypad has different keys, including navigational keys, control keys, and functional keys. For internal communication, the 2711-K10C9 terminal uses the RS-233 port. The display needs an AC input power of 100 to 240 Volts AC. This display panel has a colored graphic screen and features a memory capacity of 256 KB.
The 2711-K10C9 require installation to an enclosure rated NEMA Type 12/13. This PanelView display terminal supports other advanced features that include alarm handling system, screen security, and analog gauges. The standard operating temperature for the display lies between 0 and 55 degrees Celsius and the storage temperature of the drive lies between -25 and 70 degrees Celsius. The 2711-K10C9 terminal dissipates 39 Watts of heat per hour under normal operating conditions. The display comes with different certifications. It has been certified with the Emissions Class A, UL508, CSA, UL, standards. These certifications verify the different safety and environmental standards maintained by the display.
Recommended model:
2711-K10C16 RS-232 (DF1) communication and RS-232 printer/download port
2711-K10C16L1 Keypad – RS-232 (DF1) Communication and RS-232 Printer/Download Port 10″ Color Display
2711-K10C1L1 Keypad – Remote I/O Communications and RS-232 Printer Port 10″ Color Display
2711-K10C20 EtherNet/IP communication and RS-232 printer port
2711-K10C20L1 Keypad-EtherNet/IP Communications and RS-232 Printer Port 10″ Color Display
2711-K10C3 DH-485 communication and RS-232 printer port
2711-K10C3L1 Keypad-DH-485 Communications and RS-232 Printer Port 10″ Color Display
