Description
Product details:
Manufacturer | Rockwell Automation |
Series | ControlLogix |
Chassis Compatibility | 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C |
Location | 1756 Chassis Left Side |
Hold Up time | 5 cycles @ 85V AC, 50/60 Hz 6 cycles @ 120V AC, 50/60 Hz 6 cycles @ 200V AC, 50/60 Hz 6 cycles @ 240V AC, 50/60 Hz |
Current Capacity | 4A at 3.3VDC; 10 A at 5.1VDC and 2.8 A at 24VDC |
Max Inrush Current | 30 Amperes |
Isolation Voltage | 250 Volts Continuous |

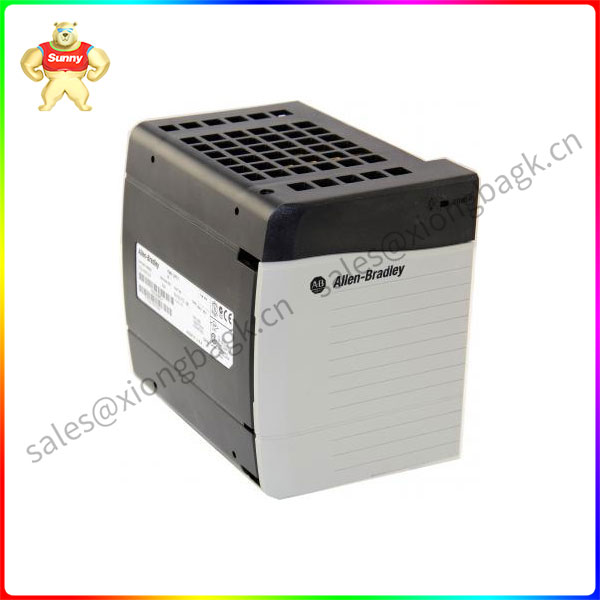

The 1756-PA72 is installed at the left most location of the chassis. It has a dedicated slot assignment, outside the chassis and does not occupy a ControlLogix slot. It may be installed in different ControlLogix chassis such as 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17, whether Series A, B and C. This power supply weighs approximately 0.95 kg (2.10 lb) with physical dimensions of 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.).
The 1756-PA72 has a power consumption of 25 Watts at 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). This power supply has a power dissipation of 85.3 BTU/hour and a power supply with a maximum inrush current of 20 A. The Allen-Bradley 1756-PA72 provides built-in overcurrent protection. It is user-supplied at a maximum of 15 A. The maximum transformer load of this power supply is 100VA and the voltage isolation is 250 Volts continuous. The 1756-PA72 also has a reinforced insulation type tested at 3500 Volts DC for 60 seconds. The Allen-Bradley 1756-PA72 is open type equipment.
