Product details：

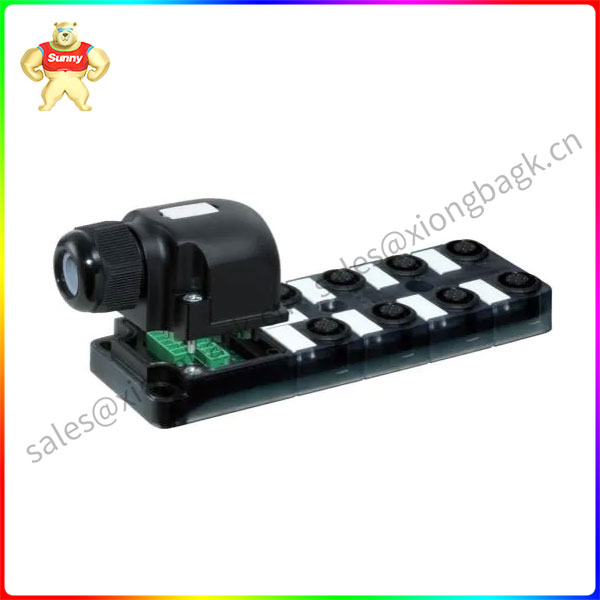

URRELEKTRONIK 8000-88450-000 0000 EXACT12, 8XM12, 4 POLE CAP, PLUG. SCREW-TERM

8-way, 4-pole
Form PNP
Screw plug-in terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.

TECHNICAL DATA
Operating voltage 24 V DC
Operating current per contact max. 4 A
Connection Screw plug-in terminals: max. 1.5 mm² (AWG 16)
Protection IP65/IP67
Housing Plastic, flame retardant
Total current max. 8 A

The working principle of AC contactor is to use electromagnetic force and spring elastic force to realize the contact connection and break. Ac contactor has two working states: loss state (release state) and power state (action state). When the attracting coil is energized, the static iron core generates electromagnetic suction, the armature is drawn, and the connecting rod connected with the armature drives the contact action, so that the normally closed contact breaker is in a state of electricity. When the suction coil is powered off, the electromagnetic suction disappears and the armature is re-opened to make the normally open contacts close and released under the action of the bit spring. All contacts are then reset and the contactor is in a state of loss of power.
