Description

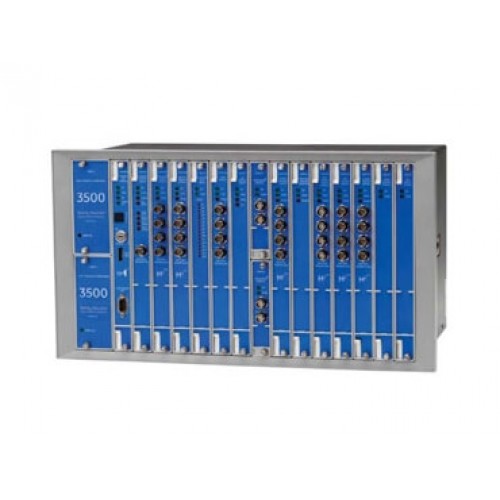

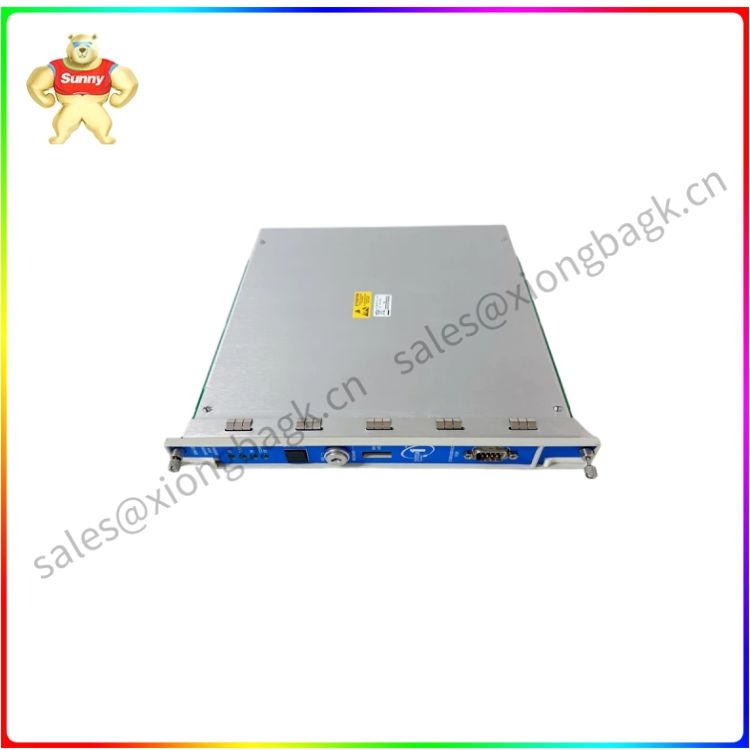

3500/22M Robot control system

Controls
Front Panel
Rack reset
button:
Clears latched alarms and Timed
OK Channel Defeat in the rack.
Performs same function as “Rack
Reset” contact on I/O module.
Address switch:
Used to set the rack address: 127
possible addresses.
Configuration
Keylock:
Used to place 3500 rack in either
“RUN” mode or “PROGRAM” mode.
RUN mode allows for normal
operation of the rack and locks
out configuration changes.
PROGAM mode allows for normal
operation of the rack and also
allows for local or remote rack
configuration. The key can be
removed from the rack in either
position, allowing the switch to
remain in either the RUN or
PROGRAM position. Locking the
switch in the RUN position allows
you to restrict unauthorized rack
reconfiguration. Locking the
switch in PROGRAM position
allows remote reconfiguration of
a rack at any time.

I/O Module OK
Relay:
Relay to indicate when the 3500
rack is operating normally or
when a fault has been detected
within the rack. User can select
either an “OPEN” or “CLOSED”
contact to annunciate a NOT OK
condition. This relay always
operates as “Normally Energized”.
