ACOPOS 1090 8V1090.00-2 Multi-Axis Servo Drive​

Description

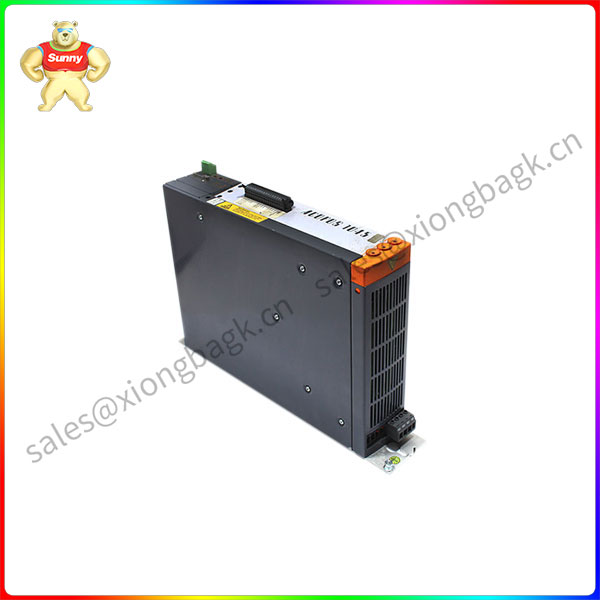

​​ACOPOS 1090 8V1090.00-2 Multi-Axis Servo Drive​​

​​Product Overview​​

The ​​ACOPOS 1090 8V1090.00-2​​ is a highly advanced multi-axis servo drive from B&R Automation, designed for demanding motion control applications requiring high power density, precision, and dynamic performance. As part of the renowned ACOPOS family, this drive delivers exceptional control capabilities for complex automation systems in various industries. Engineered with state-of-the-art power electronics and intelligent cooling technology, the ACOPOS 1090 provides reliable operation even in the most challenging industrial environments, making it ideal for applications ranging from packaging machinery to robotic systems.

​​Key Features​​

• ​​High Power Density​​: Compact design delivering maximum power in minimal space
• ​​Multi-Axis Capability​​: Integrated control for up to 8 axes (depending on configuration)
• ​​Ethernet POWERLINK​​: High-speed deterministic communication for real-time control
• ​​Advanced Safety​​: Integrated safety functions (STO, SS1, SS2, SBC)
• ​​Intelligent Cooling​​: Optimized thermal management for enhanced reliability
• ​​Dynamic Performance​​: High overload capacity for demanding motion profiles
• ​​Modular Design​​: Flexible expansion and easy maintenance
• ​​Energy Efficiency​​: Regenerative braking capability reduces energy consumption

​​Technical Specifications​​

8V1045.00-2

​​Functional Specifications​​

​​Motion Control Capabilities​​

• ​​Position Control​​: High-precision positioning with electronic cam and gearing
• ​​Velocity Control​​: Precise speed regulation with minimal ripple
• ​​Torque Control​​: Accurate torque limitation and control
• ​​Advanced Functions​​: Flying saw, registration, winding control

​​Performance Characteristics​​

• ​​Control Bandwidth​​: Up to 2.5 kHz velocity loop
• ​​Position Accuracy​​: ±1 increment (with appropriate feedback)
• ​​Synchronization​​: Nanosecond-level synchronization between axes
• ​​Update Rates​​: Configurable up to 400 μs cycle times

​​Integrated Safety Functions​​

• ​​Safe Torque Off (STO)​​: Prevents unintended motor starting
• ​​Safe Stop 1 (SS1)​​: Monitored stop with torque removal
• ​​Safe Stop 2 (SS2)​​: Monitored stop with safe standstill
• ​​Safe Brake Control (SBC)​​: Controls holding brake safely

​​Applications​​

​​Industrial Automation​​

• Packaging machinery
• Printing and converting equipment
• Material handling systems
• Assembly automation

​​Specific Applications​​

• Robotic systems and manipulators
• CNC machines and machining centers
• Textile machinery
• Wood processing equipment

​​Industry Sectors​​

• Food and beverage
• Pharmaceutical and medical
• Automotive manufacturing
• Consumer goods production

​​System Architecture​​

​​Communication Interfaces​​

• ​​Ethernet POWERLINK​​: Real-time deterministic Ethernet
• ​​X2X Link​​: Backplane communication for module expansion
• ​​USB 2.0​​: Service and configuration interface
• ​​Digital I/O​​: High-speed input/output channels

​​Expansion Capabilities​​

• ​​Axis Expansion​​: Additional axis modules
• ​​I/O Expansion​​: Digital and analog I/O modules
• ​​Communication​​: Fieldbus and networking options
• ​​Safety​​: Additional safety function modules

​​Installation Requirements​​

​​Electrical Installation​​

• ​​Power Supply​​: 400-480V AC, 3-phase + PE
• ​​Line Protection​​: Circuit breaker or fuses (see manual for ratings)
• ​​Motor Connection​​: Shielded cables recommended
• ​​Grounding​​: Proper protective earth connection required

​​Mechanical Installation​​

• ​​Mounting​​: Vertical mounting on DIN rail or panel
• ​​Clearance​​: Minimum 100mm above and below for cooling
• ​​Environment​​: Clean, dry environment free from conductive dust
• ​​Vibration​​: Maximum 0.5g operational vibration

​​Cooling Requirements​​

• ​​Natural Convection​​: Requires minimum clearances
• ​​Forced Air​​: Optional for high ambient temperatures
• ​​Derating​​: Required above 45°C ambient temperature

​​Ordering Information​​

​​Optional Accessories​​

• ​​8V…​​ Axis expansion modules
• ​​X20​​ I/O modules for system expansion
• ​​Communication​​ Various fieldbus interfaces
• ​​Mounting​​ DIN rail and panel mounting kits

​​Configuration and Programming​​

​​Software Tools​​

• ​​Automation Studio​​: Integrated development environment
• ​​mapp Technology​​: Pre-configured software components
• ​​Drive Designer​​: Specific drive configuration tool
• ​​Safety Designer​​: Safety function configuration

​​Programming Languages​​

• ​​IEC 61131-3​​: Standard PLC programming languages
• ​​C/C++​​: High-level language for complex algorithms
• ​​MATLAB/Simulink​​: Model-based design integration
• ​​Sequential Function Chart​​: State machine programming

​​Maintenance and Diagnostics​​

​​Preventive Maintenance​​

• ​​Visual Inspection​​: Check for physical damage every 6 months
• ​​Cooling System​​: Ensure ventilation paths are clear
• ​​Connections​​: Verify tightness of electrical connections
• ​​Firmware​​: Regular updates to latest version

​​Diagnostic Capabilities​​

• ​​LED Indicators​​: Comprehensive status indication
• ​​Web Interface​​: Built-in web server for monitoring
• ​​Diagnostic Buffer​​: Stores last 1000 error messages
• ​​Condition Monitoring​​: Predictive maintenance data

​​Troubleshooting​​

• ​​Error Codes​​: Detailed error descriptions and solutions
• ​​Oscilloscope Function​​: Built-in signal analysis tool
• ​​Trace Function​​: Real-time signal recording capability
• ​​Remote Access​​: Secure remote diagnostics capability

​​Safety and Compliance​​

​​Safety Standards​​

• ​​EN ISO 13849-1​​: Safety of machinery
• ​​IEC 61508​​: Functional safety of electrical/electronic systems
• ​​IEC 61800-5-2​​: Adjustable speed electrical power drive systems
• ​​UL 61800-5-2​​: North American safety standard

​​EMC and Environmental​​

• ​​EMC Directive​​: 2014/30/EU compliance
• ​​Low Voltage Directive​​: 2014/35/EU compliance
• ​​RoHS​​: 2011/65/EU compliance
• ​​WEEE​​: 2012/19/EU compliance

​​Technical Support​​

​​Documentation Resources​​

• ​​Operating Instructions​​: Detailed installation and operation manual
• ​​Technical Data Sheet​​: Comprehensive technical specifications
• ​​Safety Guidelines​​: Important safety information
• ​​Application Examples​​: Specific implementation examples

​​Support Services​​

• ​​B&R Technical Support​​: Global support network
• ​​Online Support​​: Web-based support portal
• ​​Training Courses​​: Comprehensive training programs
• ​​Service Contracts​​: Extended warranty and support options
