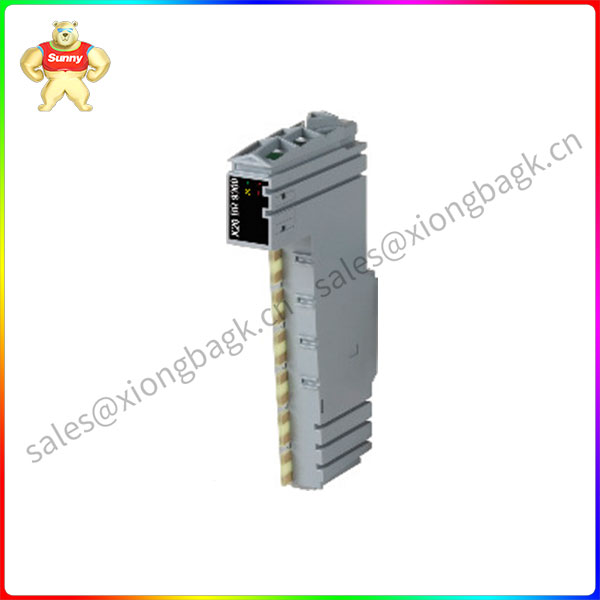

X20BR9300 X2X Link and internal I/O supply

Product Overview:

  • X2X Link bus receiver
  • Feed for X2X Link and internal I/O supply
  • Electrical isolation of feed and X2X Link supply
  • Redundancy of X2X Link supply possible by operating multiple supply modules simultaneously
  • Operation only on the slot to the far left

The bus receiver is used to connect the X20 System to the X2X Link. The module

is equipped with a feed for the X2X Link as well as the internal I/O supply.

Add to quote
Category:

Description

X20BR9300 X2X Link and internal I/O supply

Product Overview:

  • X2X Link bus receiver
  • Feed for X2X Link and internal I/O supply
  • Electrical isolation of feed and X2X Link supply
  • Redundancy of X2X Link supply possible by operating multiple supply modules simultaneously
  • Operation only on the slot to the far left

The bus receiver is used to connect the X20 System to the X2X Link. The module

is equipped with a feed for the X2X Link as well as the internal I/O supply.

2 Coated modules
Coated modules are X20 modules with a protective coating for the electronics component. This coating protects
X20c modules from condensation and corrosive gases.
The modules’ electronics are fully compatible with the corresponding X20 modules.
For simplification purposes, only images and module IDs of uncoated modules are used in this data sheet.
The coating has been certified according to the following standards:
• Condensation: BMW GS 95011-4, 2x 1 cycle
• Corrosive gas: EN 60068-2-60, Method 4, Exposure 21 days

X20BR9300

9.3.1 Using the module on the bus controller
Function model 254 “Bus controller” is used by default only by non-configurable bus controllers. All other bus
controllers can use additional registers and functions depending on the fieldbus used.
For detailed information, see section “Additional information – Using I/O modules on the bus controller” of the X20
user’s manual (version 3.50 or later).
9.3.2 CAN I/O bus controller
The module occupies 1 analog logical slot on CAN I/O.
9.4 Module status
Name:
Module status
The following voltage and current states of the module are monitored in this register:
Bus supply current: Bus supply current >2.3 A is displayed as a warning.
Bus supply voltage: Bus supply voltage <4.7 V is displayed as a warning.
24 VDC I/O supply voltage: I/O supply voltage <20.4 V is displayed as a warning.
