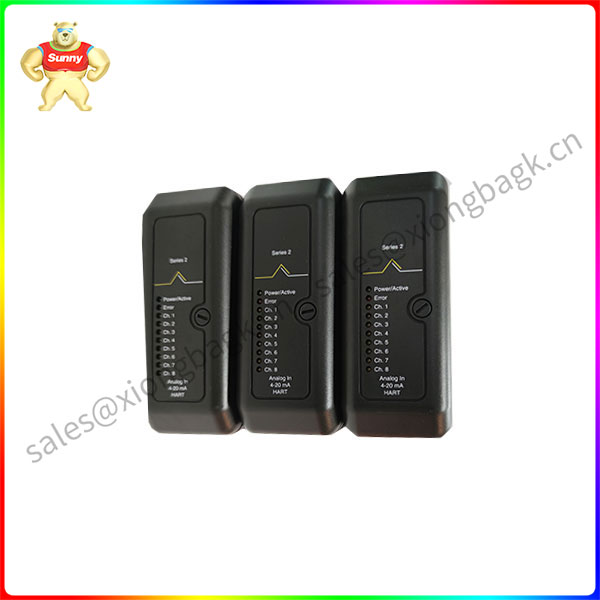

KJ3222X1-BA1 Analog Input HART Module

KJ3222X1-BA1 Analog Input HART Module

This unit cannot be removed or inserted with system power energized unless the area is known to be
non-hazardous.
An I/O loop assessment must be completed on all energy-limited nodes.
A keying system ensures compatibility between a CHARM and the CHARM terminal block when the
CHARM is installed on the terminal block. This product must be used only with KL4505X1-EA1 LS
DVC CHARM Terminal. Both CHARM and Terminal have fixed keying preventing any other combination.

The KJ3222X1-BA1 analog input HART module is specially designed for the field of industrial automation and

measurement with high performance and stability. It adopts HART (Highway Addressable Remote

Transducer) communication protocol, which can realize two-way communication with field equipment,

so as to realize the acquisition, processing and transmission of various analog input signals.

The module usually has multiple channels and can receive analog input signals from different sensors,

such as temperature, pressure, flow, etc. Each channel has its own circuit design and signal

processing functions to ensure signal accuracy and stability. In addition, the KJ3222X1-BA1 module

also has the characteristics of high precision and wide range, which can adapt to a variety of complex industrial environments.

In the application, KJ3222X1-BA1 module can be connected with the host computer or other control

systems to achieve real-time data acquisition, display and record. Through HART communication

protocol, the host computer can remotely access the internal data of the module, and perform parameter

setting, fault diagnosis and calibration operations. At the same time, the module also supports a

variety of communication interfaces and protocols to facilitate integration and connection with different systems.

Overall, the KJ3222X1-BA1 analog input HART module is a powerful and stable industrial automation

equipment suitable for a variety of applications requiring accurate measurement and control. Through

its high performance and flexible configuration, it can meet the needs of different applications and improve production efficiency and quality.
