Description
Product details:

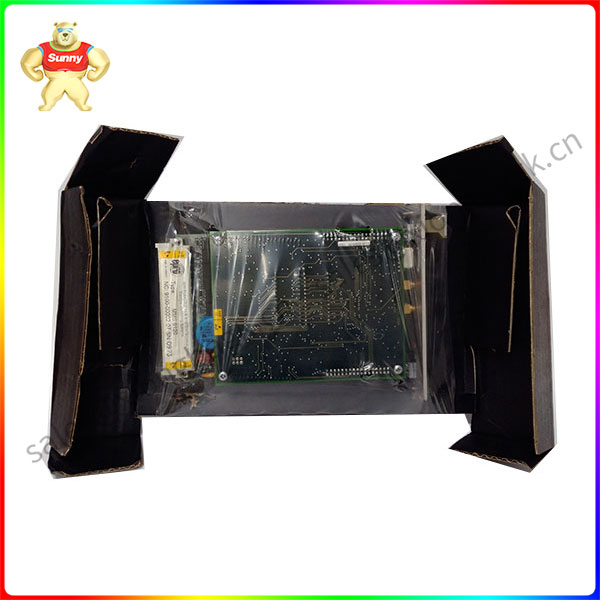

MMS6120 Dual-channel tile vibration measurement module MMS6120
Modules are designed to meet common international standards, such as API670, VDI2056 and VDI2059. Measurements of this module can be combined with measurements of other modules to form a turbo-mechanical protection system, and provided as inputs to analytical diagnostic systems, fieldbus systems, decentralized control systems, plant/host computers, networks such as WAN/LAN networks, and Ethernet.
For steam engine, gas engine, water turbine, compressor, fan, centrifuge and other turbomachinery, using this system can improve the efficiency, operation safety and prolong the service life of the machinery.
MMS6120 is a two-channel bearing vibration measurement module, which can be used to measure bearing vibration (watt vibration) with an electric speed sensor to monitor and protect various types of turbo-machinery, such as: steam turbine, gas turbine, compressor, fan, gearbox, blower, centrifuge, etc.
The output signal of the sensor mounted on the bearing is proportional to the absolute dui vibration of the bearing. The MMS6120 module converts the sensor input signals of the two channels into standard signal output. Other parts of the module provide alarm, sensor power supply, module power supply, channel and sensor detection and signal filtering and other functions.
The module has a built-in microprocessor, which can set the working mode and parameters through the field portable computer or the remote communication bus, read all the measured values, and carry out spectrum analysis. The last start/stop process is stored in the module and can be displayed through the computer.
Characteristics of vibration dual channel detector MMS6120
l Double channel bearing vibration measurement module, monitoring bearing vibration.
l can be replaced in operation, can be used alone, redundant power input.
l Extended self-check function, built-in sensor self-check function, password protection operation level.
l for electric speed sensor PR9266/… And PR9268/… Or piezoelectric sensors.
l RS232/RS485 port for field configuration and communication, can read the measured value, including the selected harmonic value and phase Angle.
l Record and store measurement data of the last start/stop.
