Description
Product details:
Foxboro ( by Schneider Electric )

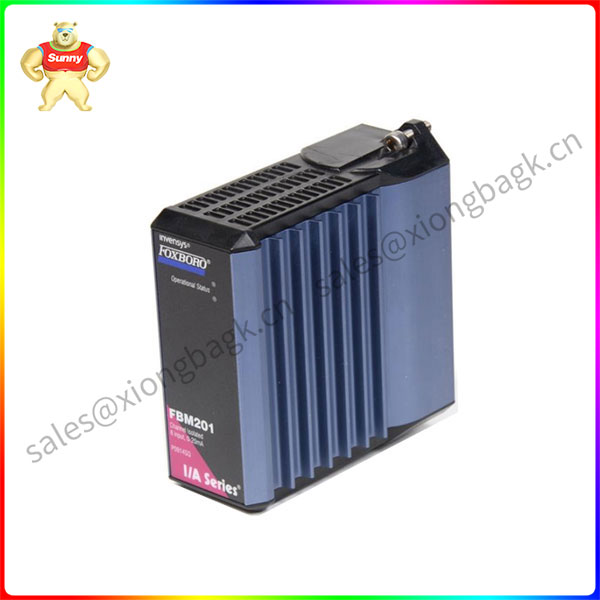

Product No. : FBM201
Product Type : Analog Input Interface Modules
Features : Eight channels for input of analog sensor signals: 0 to 20 mA dc – FBM201, 0 to 100 mV dc – FBM201b, 0 to 5 V dc – FBM201c, 0 to 10 V dc – FBM201d, Each analog input channel is galvanically isolated from other channels and ground, Compact, rugged design suitable for enclosure in Class G3 (harsh) environments ,Execution of an analog input application program that provides conversion time and configurable options for integration time and Rate of Change Limits , High accuracy achieved by sigma-delta data conversions for each channel, Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM201/b/c/d modules, Termination Assemblies for per channel internally and/or externally loop powered transmitters.
Process I/O Communications : Communicates with its associated FCM or FCP via the redundant 2 Mbps module Fieldbus.
Input Channels : 8 isolated and independent channels
Input Range (each channel) : FBM201: 0 to 20 mA dc , FBM201b: 0 to 100 mV dc , FBM201c: 0 to 5 V dc , FBM201d: 0 to 10 V dc
Consumption : 7 W (maximum)
Heat Dissipation : 3 W (maximum)
Calibration Requirements : Calibration of the module and termination assembly is not required.
Temperature : -40 to +70°C (-40 to +158°F)
Relative Humidity : 5 to 95% (noncondensing).
Altitude : -300 to +12,000 m (-1,000 to +40,000 ft
Temperature : -40 to +70°C (-40 to +158°F)
Dimensions (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm
Recommended model:
Thirty-two Discrete Inputs connect to thirty-two DeltaV DI CHARMs – termination assembly model number FBM217 / P0916PW.
Eight Discrete Inputs connect to eight DeltaV DI CHARMs – termination assembly model numbers FBM241c / P0916AW, FBM241c / P0916JW, FBM241c / P0916QQ, and FBM241 / P0916AQ.
Eight *Thermocouple/mV Analog Inputs connect to eight DeltaV Thermocouple/mV CHARMs – termination assembly model number FBM202 / P0916AC.
Eight RTD Pt/Ni 2 or 3-wire Analog Inputs connect to eight DeltaV RTD CHARMs – termination assembly model number FBM203 / P0916AE.
Four Analog Inputs connect to four DeltaV 4-20mA AI CHARMs– termination assembly model numbers FBM204 / P0916AG and FBM205 / P0916AJ.
Fourteen *Thermocouple/mV Analog Inputs connect to fourteen DeltaV Thermocouple/mV CHARMs – termination assembl model number FBM212 / P0916BV.
Eight Analog Outputs connect to eight DeltaV 4-20mA output CHARMs – termination assembly model number FBM237 / P0916CC
Eight Discrete Outputs connect to eight DeltaV DO CHARMs – termination assembly model numbers FBM219 / P0917LE, FBM219 / P0917LH, FBM241c / P0916AW, FBM241c / P0916JW, FBM241c / P0916QQ, and FBM241 / P0916AQ.
Sixteen Discrete Outputs connect to sixteen DeltaV DO CHARMs – termination assembly model number FBM242 / P0916JY.
