Description
Product details:
Foxboro ( by Schneider Electric )

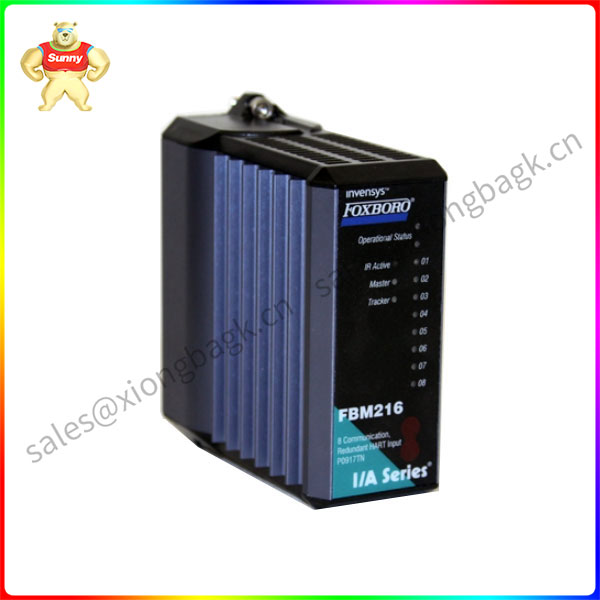

Product No. : FBM216
Product Type : HART Communication Redundant Input Interface Module
Process I/O Communications : Communicates with its associated FCM or FCP via the redundant 2 Mbps module Fieldbus.
Input Channels : 8 isolated and independent channels
Input Range (each channel) : FBM201: 0 to 20 mA dc , FBM201b: 0 to 100 mV dc , FBM201c: 0 to 5 V dc , FBM201d: 0 to 10 V dc
Consumption : 7 W (maximum)
Heat Dissipation : 3 W (maximum)
Calibration Requirements : Calibration of the module and termination assembly is not required.
Temperature : -40 to +70°C (-40 to +158°F)
Relative Humidity : 5 to 95% (noncondensing).
Altitude : -300 to +12,000 m (-1,000 to +40,000 ft
Temperature : -40 to +70°C (-40 to +158°F)
Dimensions (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm
Recommended model:
Thirty-two Discrete Inputs connect to thirty-two DeltaV DI CHARMs – termination assembly model number FBM217 / P0916PW.
Eight Discrete Inputs connect to eight DeltaV DI CHARMs – termination assembly model numbers FBM241c / P0916AW, FBM241c / P0916JW, FBM241c / P0916QQ, and FBM241 / P0916AQ.
Eight *Thermocouple/mV Analog Inputs connect to eight DeltaV Thermocouple/mV CHARMs – termination assembly model number FBM202 / P0916AC.
Eight RTD Pt/Ni 2 or 3-wire Analog Inputs connect to eight DeltaV RTD CHARMs – termination assembly model number FBM203 / P0916AE.
Four Analog Inputs connect to four DeltaV 4-20mA AI CHARMs– termination assembly model numbers FBM204 / P0916AG and FBM205 / P0916AJ.
Fourteen *Thermocouple/mV Analog Inputs connect to fourteen DeltaV Thermocouple/mV CHARMs – termination assembl model number FBM212 / P0916BV.
Eight Analog Outputs connect to eight DeltaV 4-20mA output CHARMs – termination assembly model number FBM237 / P0916CC
Eight Discrete Outputs connect to eight DeltaV DO CHARMs – termination assembly model numbers FBM219 / P0917LE, FBM219 / P0917LH, FBM241c / P0916AW, FBM241c / P0916JW, FBM241c / P0916QQ, and FBM241 / P0916AQ.
Sixteen Discrete Outputs connect to sixteen DeltaV DO CHARMs – termination assembly model number FBM242 / P0916JY.
