Description
Manufacturer GE General Electric
Series Mark V
Part Number DS200ACNAG1ADD
Product Type ARCNET Connection Card
Product Description
The DS200ACNAG1ADD is an ARCNET (Attached Resource Computer Network) Card manufactured by
General Electric for their Mark V series. The Mark V is part of GE’s successful Speedtronic line of gas/steam
turbine management systems. This series has been managing heavy-duty turbine systems since the 1960s, wi
th GE developing more reliable, advanced systems as technology allowed. The Mark V is built with triple-redund
ant backups on all critical controls and protection parameters and includes such features as built-in diagnostics a
nd online maintenance.
The DS200ACNAG1ADD card provides a connection point for ARCNET LAN communications within the MKV sys
tem. Board signals travel on a pathway between the main processor board (LDCC,) through the ARCNET board, to the
turbine control operator interface and back again. These signals travel via co-axial cables.
DS200ACNAG1ADD

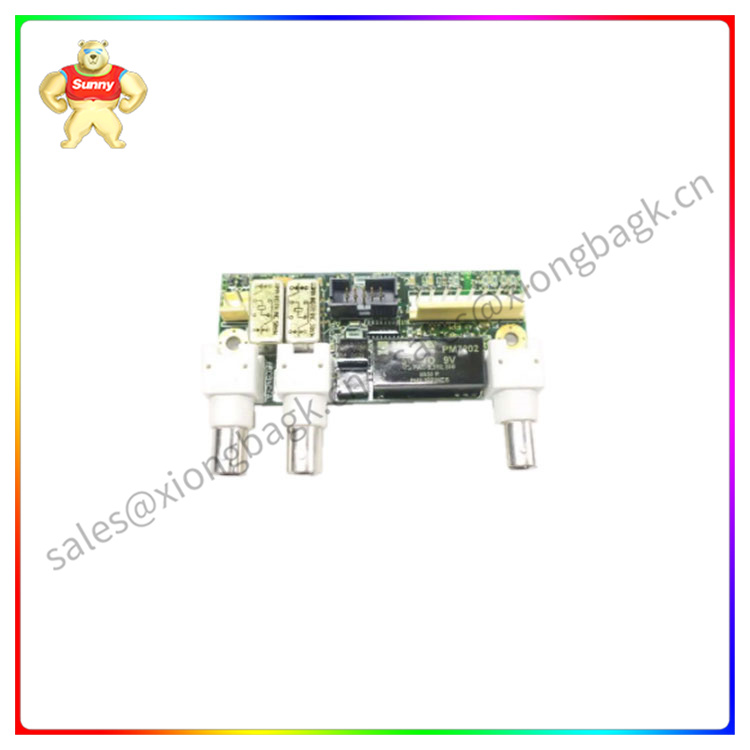

The DS200ACNAG1ADD is a small circuit board with few components. The board has four metal film resistors (R1 throu
gh R4,) three capacitors (C1 through C3,) and one diode. Two factory-drilled holes located on either side of the board ha
ve a metal washer inserted into their opening. These two openings are marked as GND1/GND2. Two relays are located n
ear the bottom edge of the board. Both relays include a relay diagram on their top surface. Relay diagrams are visual rep
resentations of the relay logic that allows the relay to function.
The DS200ACNAG1ADD has three communications devices. This includes a vertical pin terminal connector with six pins
that is placed in the very center of the board, as well as two BNC plugs (right-angled, female) that are placed with the ope
nings off the top edge of the board. These plugs will accept the LAN coaxial cables.
