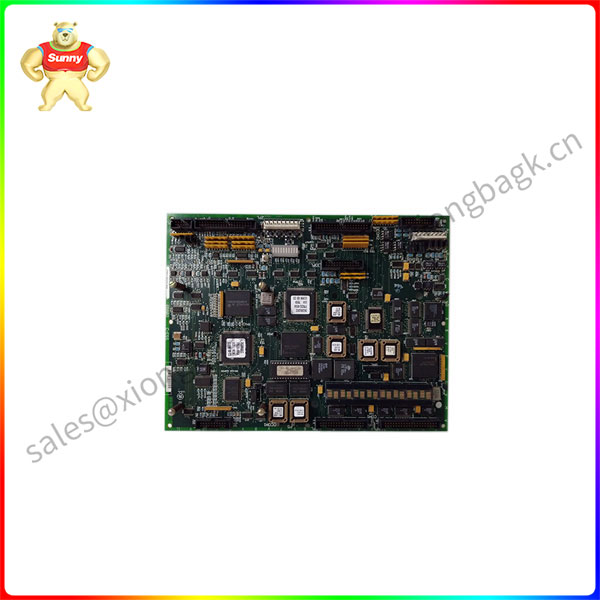

DS200LDCCH1ANA Driver control/LAN communication board

The GE Drive Control/LAN communication board DS200LDCCH1ANA features multiple microprocessors that provide control for drive, motor, and I/O functions. It also provides control over the local area network. The GE Drive control/LAN communication board DS200LDCCH1ANA houses four microprocessors, each with a separate function. A microprocessor provides drive control processing. A microprocessor provides motor control processing. A microprocessor provides common motor processing. A microprocessor provides LAN control processing. If the board is not working properly or does not seem to be providing optimal performance, you may need to perform a soft reset on the board. A hard reset is when the power supply is interrupted and the board must be restarted. This should be avoided if possible, and only if the drive fails or trip conditions cause the drive to shut down unexpectedly. For example, if there is an overload situation, the driver will automatically shut down to protect the components and motor.
