Description
Part Number DS200PCCAG1ABB
Series Mark V
Manufacturer GE Industrial Control Systems
Product Type PCCA Power Connect Card
Instruction Manual GEI-100161
Abbreviation PCCA
Armature Voltage Regenerative, 240-630 volts
Weight 1lbs
Shipping Dimensions 18 by 12 by 12 inches
Country of Origin United States

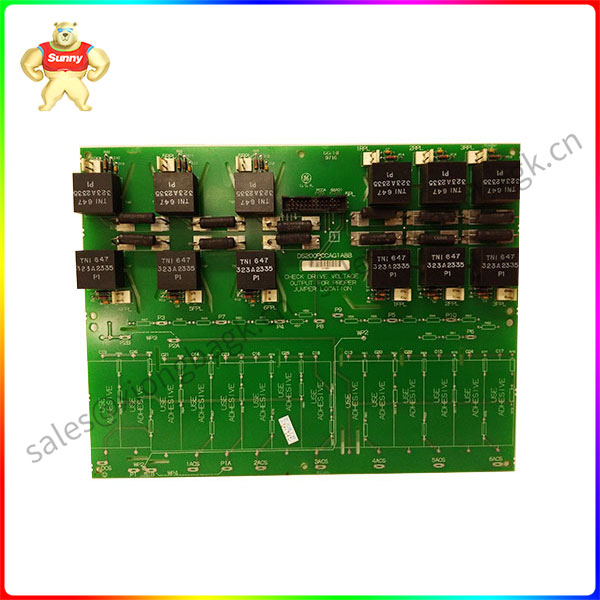

The DS200PCCAG1ABB PCCA Power Connect Card serves as an interface board between the SCRs and t
he drive’s control circuitry. Information about the DS200PCCAG1ABB can be found in the GE Industrial Control S
ystem Instruction Manual GEI-100161A and GEI-100161B. This board is the “ABB” revision of the baseline DS200
PCCAG1 model and is the G1 group number. The G1 group number means that this PCCA board is regenerative a
nd has an armature voltage scaling of 240-630 volts.
The DS200PCCAG1ABB has four configurable jumpers located at JP1, JP2, WP3, and WP4. These jumpers, when
set to application specific configuration, inform the drive if the snubber capacitors are connected to the power bridge
at the same point as the voltage feedback channel. The jumpers are specifically used as follows:
JP1 selects DC Armature Voltage Range
JP2 is used along with JP1 to select DC Armature Voltage Range
WP3 is set to configure snubber and voltage feedback connection status
WP4 is also used to indicate snubber and voltage feedback channel connections
The DS200PCCAG1ABB is a commonly used board as part of the G1 group of PCCA Power Connect Cards and is usually available in New and Refurbished conditions as well as being repairable in most instances.
Frequently Asked Questions about DS200PCCAG1ABB
How many jumpers does DS200PCCAG1ABB have?
DS200PCCAG1ABB has 4 wire jumpers. The jumpers on DS200PCCAG1ABB are JP1, JP2, WP3, and WP4. These jumpers for DS200PCCAG1ABB select system voltage and determine snubber capacitor connections.
How many AC volts does DS200PCCAG1ABB have?
DS200PCCAG1ABB has ≤600 V rms AC volts. We know this because DS200PCCAG1ABB is a G1 board group PCCA.
Is DS200PCCAG1ABB regenerative?
Yes, DS200PCCAG1ABB is regenerative because DS200PCCAG1ABB is a G1 PCCA board. G1, G7, and G9 PCCA boards, including DS200PCCAG1ABB, are all regenerative while G2, G8, and G10 are non-regenerative.
Where can I find the manual for DS200PCCAG1ABB?
We can supply you with the manual for DS200PCCAG1ABB. The manual that goes with DS200PCCAG1ABB is Manual GEI-100151, the GE Industrial Control Systems PCCA Power Connect Card Manual. This manual is an original manual by General Electric and the manual provides a functional description of DS200PCCAG1ABB, application data for DS200PCCAG1ABB, and the manual has renewal/warranty replacement information on DS200PCCAG1ABB.
The DS200PCCAG1ABB is preferable to versions of the PCCA board in the G2, G8, and G10 groups due to its regenerative capacity. The ABB revision of the DS200PCCAG1ABB is not substantially different than the DS200PCCAG1ACC and is compatible with most applications that require the G1 group number. It has a low failure rate but is critical in many applications necessitating a stock shelf replacement to avoid downtime.
