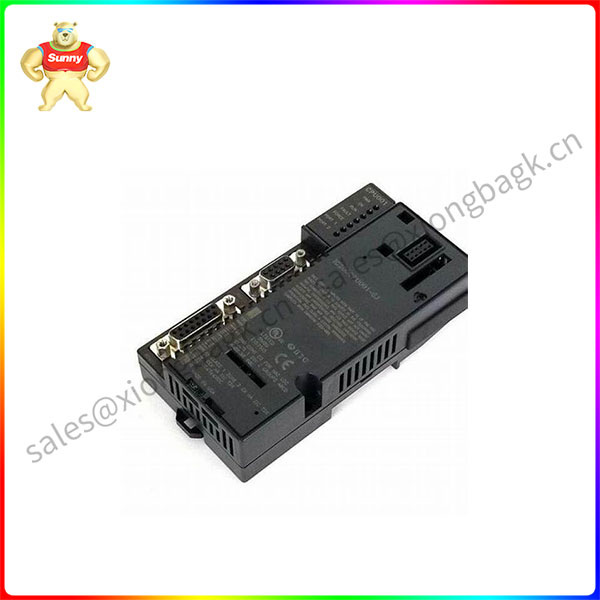

IC200CPUE05 VersaMax series CPU module
Product Description
The IC200CPUE05 product details are as follows:
Basic information
Product model: IC200CPUE05
Manufacturer: GE Fanuc
Product Description: The VersaMax series CPU module is a user configurable CPU module that provides all PLC functions in a small device.
Physical specification
Dimensions: 126 x 128 x 69.1 mm (W x H x D)
Installation: Support DIN rail installation
System parameter
Power requirements:
Use 220mA at 5VDC
3.3 570mA is used for VDC
Memory:
System flash, battery-operated memory
The maximum configurable memory is 64K bytes
Execution speed: A typical value for floating-point operations is 0.8 ms/K
Real-time clock accuracy: 100ppm (0.01%) or +/- 9 seconds/day
Communication interface
Built-in communication: Support for RS-232, RS-485, and Ethernet interfaces
Ethernet data rate: 10Mbps (half-duplex or full-duplex)
Ethernet port: RJ-45, UTP SRTP
Serial port:
Port 1: RS-232 port with 9-pin female connector
Port 2: R3-485 port with a female D-sub connector with 15 pins
Functional characteristics
System controller: Can be used as a system controller for up to 64 modules and up to 2048 I/O points.
Automatic configuration: Can be configured automatically, or configuration software is available through the programmer.
Protection features: Support over voltage, current limiting, short circuit, parallel, over temperature, over current and other automatic protection functions.
Time synchronization: Supports NTP time synchronization.
Application environment
Operating temperature: -5℃ — +45℃
Insulation resistance: 500v/50hz AC voltage is applied between the DC part, the system part and the ground, and the insulation resistance is 2mω.
Insulation strength: between the AC part and the DC part and the housing, the DC part and the housing apply 50hz 2kv AC voltage, one minute without breakdown.
Other information
Supercapacitor: Can power memory for about 1 hour when power is off.
Programming and configuration: Seamless configuration with programmer software, ladder diagram and instruction table programming.
Product parameter
The parameter information of IC200CPUE05 is as follows, which I will present clearly in the form of points:
Physical specifications:
Dimensions (W x H x D) : 126 x 128 x 69.1mm
Weight: 21 kg (Note: This data may differ from the actual product, please refer to the actual product or official data)
Power requirements:
When using 5V, the current requirement is 220mA
When using 3.3V, the current requirement is 570mA
Memory:
System flash: Supports battery-powered memory
Configurable memory: Maximum 64K bytes
Floating-point execution speed:
The typical value is 0.8 ms/K
Real-time clock accuracy:
100ppm (0.01%) or +/- 9 seconds/day
Communication interface:
Built-in: RS-232, RS-485, Ethernet
Ethernet data rate: 10Mbps (half-duplex or full-duplex)
Ethernet port: RJ-45, UTP SRTP
Number of server connections:
Number of switches based on Ethernet Global Data (EGD) configuration: 8
Data limit per exchange: 100 data
Data size per exchange: 1400 bytes
Time synchronization:
Supports NTP time synchronization
Package specifications:
TO220 (Note: Package specifications may vary depending on product version or manufacturer)
Working environment temperature:
-5℃ — +45℃
Insulation resistance and insulation strength:
An AC voltage of 500v/50hz is applied between the DC part, the system part and the ground, and the insulation resistance is 2mω.
Between the AC part and the DC part and the housing, the DC part and the housing apply 50hz 2kv AC voltage, one minute without breakdown.
Application field
IC200CPUE05 as a PLC (programmable logic controller) CPU module, its application field is very wide. Here are some possible application areas:
Industrial Automation:
In the automated production line, the IC200CPUE05 can control various industrial equipment, such as motors, pumps, valves, sensors, etc., to realize the automation of the production process.
It can handle complex logic operations and data processing tasks to ensure the stable and efficient operation of the production line.
Machinery Manufacturing:
In the field of machinery manufacturing, IC200CPUE05 can be used to control the operation of machine tools, production lines and other equipment.
It can monitor the status of the equipment in real time, and adjust the working parameters of the equipment as needed to improve production efficiency and product quality.
Process control:
In chemical, petroleum, power and other industries, IC200CPUE05 can be used in process control systems to achieve real-time monitoring and control of temperature, pressure, flow and other parameters.
It can ensure the stability and safety of the production process, reduce production costs and accident risks.
Building Automation:
In intelligent building systems, IC200CPUE05 can be used to control the operation of air conditioning, lighting, elevators and other equipment.
It can realize the centralized management and intelligent control of building equipment, improve the comfort and energy saving of buildings.
Environmental Protection and Energy Management:
In the field of environmental protection and energy management, IC200CPUE05 can be used to control the operation of sewage treatment, waste gas treatment, energy monitoring and other systems.
It can monitor and manage environmental parameters and energy use in real time, providing data support for environmental protection and energy management.
Traffic control:
In the traffic control system, IC200CPUE05 can be used to control the operation of traffic lights, road monitoring and other equipment.
It can realize intelligent traffic flow scheduling and accident warning, and improve the safety and efficiency of road traffic.
Agricultural Automation:
In modern agriculture, IC200CPUE05 can be used to control the operation of greenhouses, irrigation, fertilization and other equipment.
It can realize the automation and intelligence of agricultural production and improve the output and quality of agricultural products.
In short, as a powerful PLC CPU module, IC200CPUE05 has a wide range of applications in industrial automation, machinery manufacturing, process control, building automation, environmental protection and energy management, traffic control and agricultural automation.
