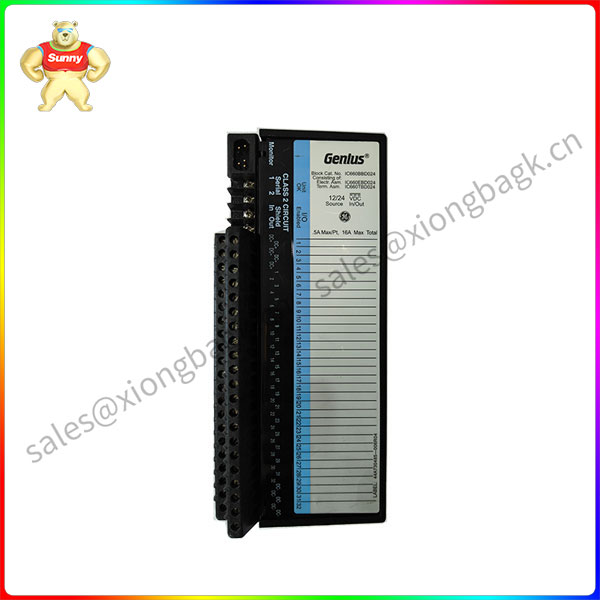

IC660EBD024 Genius Bus Driver Module

Key Features and Advantages

The GE Fanuc IC660EBD024 Genius Bus Driver Module provides robust communication for distributed I/O systems in industrial automation. Designed as the interface between PLC controllers and Genius I/O blocks, it supports networks up to 750 meters with 32 devices per bus segment. The module’s 24V DC operation and low power consumption (1.2W) make it ideal for energy-efficient control cabinet designs.

Reliable data transmission: Operating at 153.6 kbps transfer rate, the IC660EBD024 ensures deterministic communication with I/O blocks. Its 1500V AC isolation protects control systems from electrical noise and ground loops. The module implements automatic bus termination when configured as the last device on the segment, eliminating manual jumper settings.

IC660EBD024

Diagnostic capabilities: Three-color LED indicators provide immediate visual status of power, bus activity, and fault conditions. The IC660EBD024 detects wiring faults including short circuits and open connections, with status reporting to the host controller. Its rugged design operates reliably in industrial temperatures (0°C to +60°C) with resistance to vibration and electrical interference.

Configuration flexibility: The module supports both Series 90-30 and Series 90-70 PLC platforms. Its compact DIN rail mounting saves panel space while maintaining full functionality. The IC660EBD024 requires no external power supply beyond the 24V DC input, simplifying installation and reducing component count.

System integration: As part of GE’s Genius I/O system, the IC660EBD024 enables distributed control architecture that reduces wiring costs. The module supports hot swapping of I/O blocks without network disruption, minimizing downtime during maintenance. Its backward compatibility ensures seamless integration with existing Genius installations.
