Description
The IC693CPU352 is a single slot CPU module manufactured by GE Automation and Controls for the Series 90/30 PLC system. The total number of Baseplates for each system is 8, which includes one baseplate for CPU, and seven remote and expansion. The load requirement of the Power Supply is 890mA from a +5Volts DC supply. The processor type is an 80386EX with a processing speed of 25Mhz. The optimum operating temperature for the system is between 0 degrees and 60 degrees Celsius (32 degrees and 140 degrees Fahrenheit). This specification is also referred to as the ambient temperature. The typical rate of scanning is 0.22milliseconds for every 1K logic (I.e., Boolean contacts).
Since the release of version 9.0 firmware, the maximum program memory for the user is 240K Bytes. However, the effective available size of the program memory for the user depends on configured amounts for configurable types of word memory. The discrete input and output points are 2048 each, 4096 bits for internal coils, 1280 bits for global memory, 256 bits for temporary output coils, 128 bits total (%S, %SB, %SA, %SC which have 32 bits for each) as references for system status. There are %R (Register Memory), %AI (Analog Inputs), %AQ (Analog Outputs), all configurable in increments of 128 words.
There are more than 2000 numbers of Timers/Counters, and there are also Shift Registers present. There are three serial ports built-in, which support RTU slave and SNP or SNPX slave, and SNP or SNPX master or slave, and Serial Input/output (on port 1 and port 2). Communications support LAN (multidrop supported), Ethernet, Profibus, FIP, GBC, GCM+ option modules. Flash memory and RAM are the available storage memory types. The Logicmaster configuration and programming software support CPU352.
IC693CPU352
The IC693CPU352 is a module Processor module that is part of GE Fanuc’s Series 90-30 Programmable Logic Controller (PLC). This controller is a single slot CPU module that mounts to a CPU baseplate and supports communicating up to Seven (7) I/O expansion and/or Remote I/O baseplate for maximizing the module’s I/O capacity.

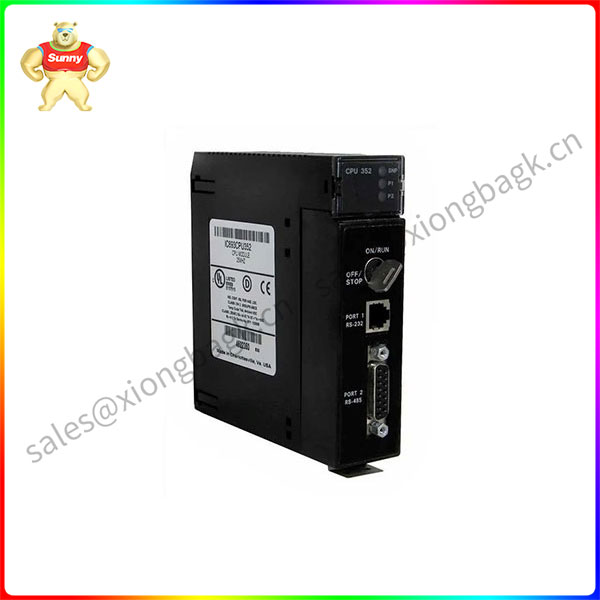

The IC693CPU352 front panel is provided with SNP LED indicator, P1 and P2 LED indicators. It has key activated mode selector switch and provided with a total of Three (3) communication ports. One (1) port is located on the power supply connector while Port 1 which is an RJ45 connector and Port 2 which is a 9-pin D-sub connector.
The IC693CPU352 supports Floating Point data processing enabled by the built-in co-processor. This is an important feature that enables this controller to process data with fractional or decimal values to provide more accurate measurement and data computation. This can be used by Human Machine Interfaces (HMI) and Supervisory Control and Data Acquisition System (SCADA) for accurate data readout or used by an internal Proportional + Integral + Derivate (PID) controller to implement more accurate and precise control.
The IC693CPU352 is equipped with 240 Kbytes user memory if loaded with firmware 9.0 and 80 Kbytes for controllers with firmware prior to release 9. This module has a 25 MHz processor speed with processor type of 80386EX and scan rate of 0.22 ms for every 1K step of Boolean logic. This module is configured using the LogixMaster 90-30, VersaPro or Proficy Machine Edition software.
The IC693CPU352 CPU is a GE Fanuc CPU module with an 80386EX processor. The IC693CPU352 CPU supports floating point math operations through a built-in math co-processor. The IC693CPU352 CPU can be installed in an 8-baseplate system where one slot is taken up by the CPU module and the remaining 7 slots are expansion slots or remote slots. The clock speed of the IC693CPU352 CPU is 25 Megahertz. The scan rate for the module for 1 KB of logic is typically 0.22 milliseconds. The module memory for firmware versions prior to Release 9.0 is 80 KB. However for firmware versions that are Release 9.0 and above, the user memory increases to 240 KB. The available user memory depends on memory that is allocated to the register memory, analog inputs, and analog outputs.
There are 3 integrated serial ports available on the IC693CPU352 CPU. Native support for SNP/SNPX slave and RTU slave operation is available. However, a PCM module is required for RTU master support and a CMM module is required for CMM support. The current requirement of the IC693CPU352 CPU at 5 Volts DC input voltage is 910 milliamps. The module does not draw current from the +12 Volts DC power supplies. The heat dissipation rating for the IC693CPU352 CPU is 4.55 Watts. A key switch is provided on the front of the IC693CPU352 CPU to select either the “Run” or “Stop” modes. LED indicators for SNR, Port 1 and Port 2 are also provided on the front of the IC693CPU352 CPU. The shield ground connector is located at the bottom of the module. The CPU firmware is loaded through Port 1 onto the flash memory by using the ladder software supplied with the firmware upgrade kit.
