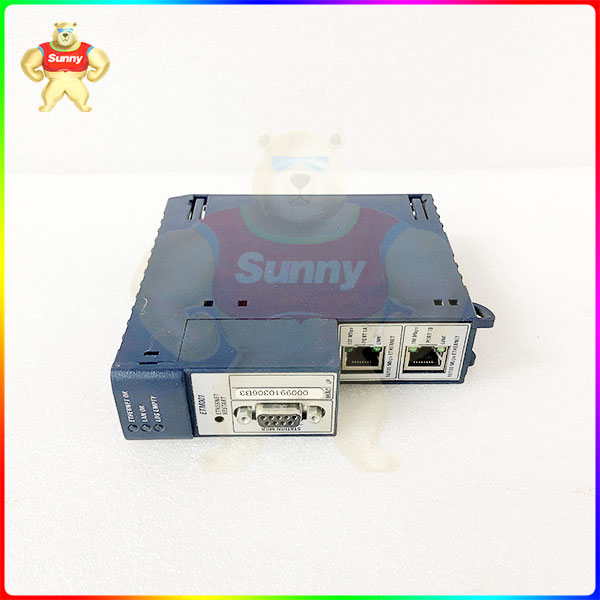

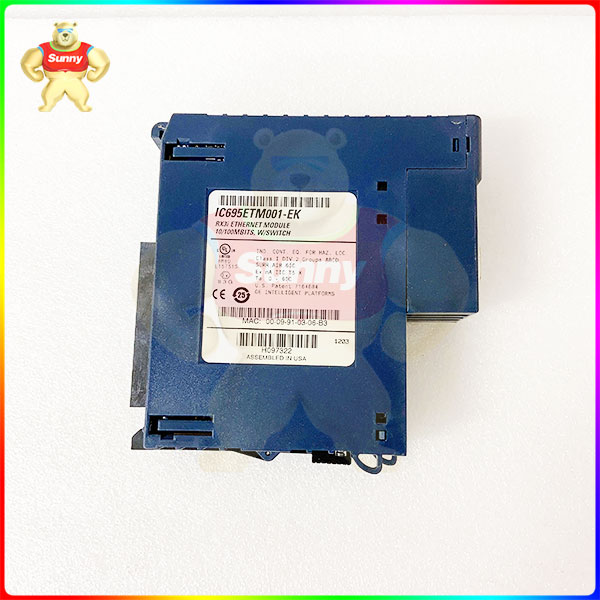

IC695ETM001 Ethernet interface module

The RX3i Ethernet interface has the following features:
The Ethernet interface implements the functions of Class 1 and Class 2 devices.
▪ Complete PLC programming and configuration services. Upgrade the firmware CPU from the PLC using the WinLoader software utility. Any updates are provided to the WInLoader Ethernet interface software. Periodic data exchange using Ethernet Global Data (EGD).
▪ The EGD command reads and writes the PLC and EGDs to exchange memory over the network.
▪ TCP/IP communication services using SRTP. Built-in workstation manager for online monitoring access to Ethernet interfaces. Dedicated station manager port.
Two adaptive 10BaseT / 100BaseTX RJ-45 shielded Twisted pair Ethernet ports are used to connect directly to 10BaseT or 100BaseTX IEEE 802.3 networks without the need for an external transceiver. The network has only one interface (only one Ethernet MAC) and only one IP address.
▪ Internal network switches feature auto-negotiation, sensing, speed and cross detection.
▪ Embedded Ethernet restart button manually restart Ethernet firmware without power cycling system.
▪led: Ethernet OK, LAN OK, log empty, single port activity and speed led.

For more information on this IC695ETM001, please refer to the following publications:
– PACSystems for TCP/IP Ethernet Communication, GFK-2224
– PACSystems TCP ip Communication, Station Manager Manual, GFK-2225
– PACSystems RX3i System Manual, GFK-2314
