Description
Product details:
Brand | QuickPanel |
Manufacturer | General Electric |
Interface | One (1) Ethernet interface, One (1) Serial EIA232C/EIA485, DP25S combo port, One (1) RS232 port Two (2) USB Interfaces. |
Integral Memory | FLASH 32 MB SRAM 512KB (power off retention is the life of the battery) DRAM 32 MB ROM 512 KB (Boot loader) |
Operator Input | Resistive, 12 bit |
Display Type | Colored Thin Film Transistor (TFT) |
Display Resolution | 320 x 240 pixels |
Clock Speed | 300 Mhz |
Processor | Intel XScale PXA255 |
Product Type | Operator Panel |
Operating System (OS) | Windows CE Operating System. |
Power Supply | 12 to 30 VDC |
Real Power | 24 W |

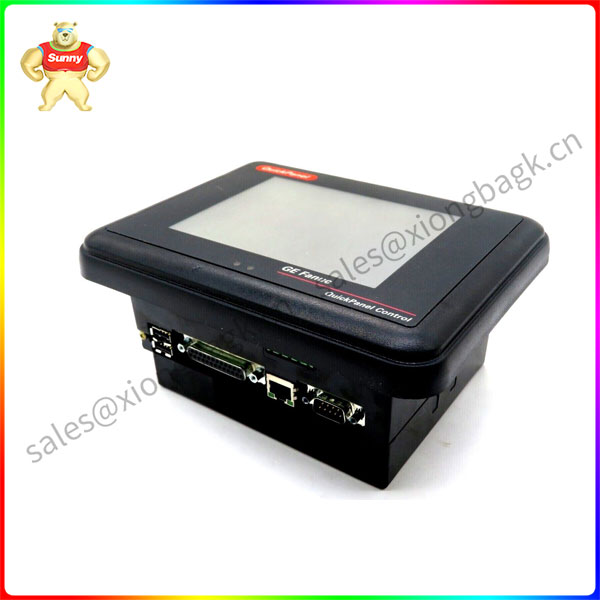

he GE Quickpanel with catalog number IC754CSF06CTD is an intelligent visualization component that acts as a Human Machine Interface (HMI). This HMI unit permits integration of Programmable Logic Controller (PLC) data, displaying the gathered data in a user-friendly representation such as textual, graphical or combination of both, to allow monitoring and control of existing variables in the connected machine or process.
The IC754CSF06CTD features a Six (6) inch colored graphic display, allowing colored representation and animation of the runtime display. With colored animation, operational states of individual instruments present in the process may be easily identified. International color codes may be followed as well as plant and area specific color codes. For control of the connected machine or process, this HMI is provided with a touchscreen interface which enable the operator to directly touch the runtime object subject for operation. This HMI exchanges data with the PLC via the built-in communication ports such as One (1) Ethernet interface, One (1) Serial EIA232C/EIA485, DP25S combo port, One (1) RS232 port and Two (2) USB Interfaces. The combination of ports allow this HMI to communication in peer-to-peer and networked topology.
Recommended model:
IC754CSF06CTD 6″ Color TFT with RS232/RS485, using 12 – 30 VDC
IC754CSF12CTD 12″ Color TFT with RS232/RS485, using 12 or 24 VDC
IC754CSF15CTD 15″ Color TFT with RS232/RS485 using 12 or 24 VDC
IC754CSL06CTD 6″ Color RS232/RS485 use 12 – 30 VDC
IC754CSL06MTD 6″ Mono with RS232/RS485, 12 – 30 VDC used
