Description
Board Type Gate Pulse Amplifier Board
Configurable Hardware 5 On-board Jumpers
Discontinued/Obsolete/Legacy Yes, contact AX Control for available surplus
Function Interface Control to Power Bridge
Functional Acronym (Abbreviation) EGPA
Instruction Manual Number GEI-100461 (GEH-6632 Series Manual)
Model Number IS200EGPAG1B
Notable Components On-board Green and Red LED Indicators
OEM / Manufacturer General Electric, GE Industrial Systems
Repairable Y/N Repair Available
Series / Product Line EX2100 Excitation Control – Exciter System
Weight 1lbs 9oz

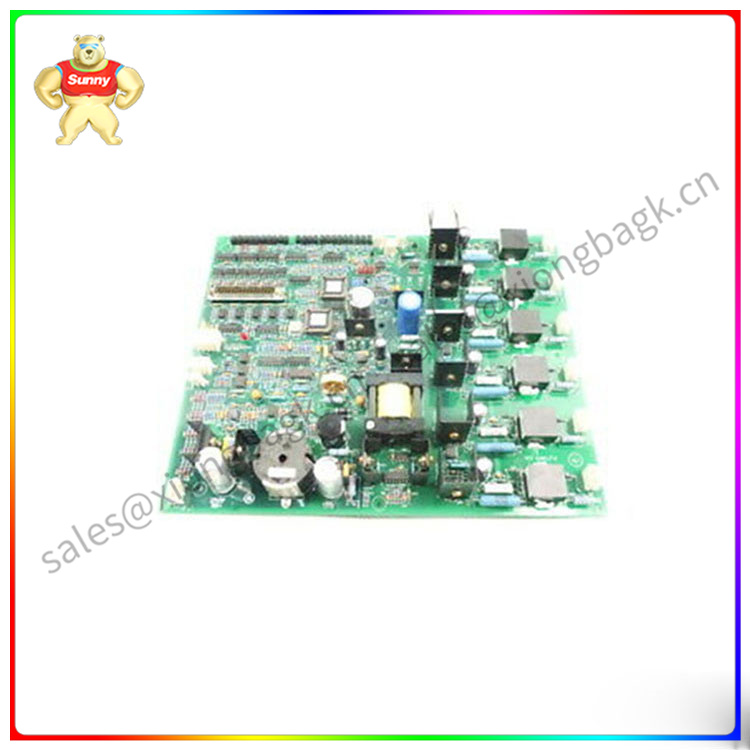

Gate pulse amplifier board number IS200EGPAG1B is located in the power conversion cabinet and can be connected to a power conversion module. This module is one of the boards that are labeled under the bridge and protection boards/modules, while this board can operate on its own, power typically needs to be taken from one of the EPDM modules.
The IS200EGPAG1B board receives feedback from two thermal switches that are mounted on the SCR heatsinks. These switches trigger and open at the alarm level and trip level and are wired directly to the IS200EGPAG1B. The temperature that the switches must reach before being triggered is a trip level of 190°F and an alarming level of 170°F. The switches can either open separately or together if only one of the switches has opened then an over-temperature alarm regarding the bridge has occurred, if both of the switches have opened it indicates that a trip and a fault have occurred.
The IS200EGPAG1B board has five jumpers, these jumpers allow the user to select the application-specific configurations required and easily adjust the jumper configuration prior to installation.
