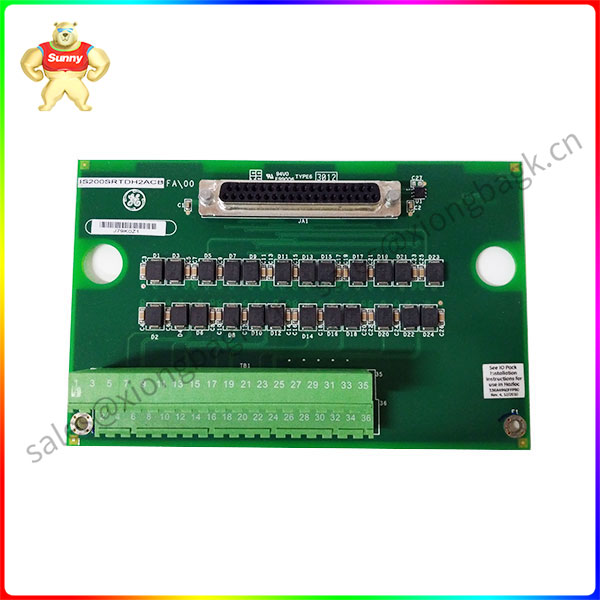

IS200SRTDH2ACB RTD Terminal Board

The IS200SRTDH2ACB-RTD series of RTD input DIN rail modulators offers a competitive advantage in both price and technology for connecting RTD inputs to SCADA systems or PLC devices. IS200SRTDH2ACB can be used to convert 2, 3, and 4 wire Pt100 RTD input signals into unipolar analog signals. The IS200SRTDH2ACB isolation model provides 3-way isolation between input, output and power supply with surge suppression to protect the control system from transient and noise effects. Low power consumption facilitates DIN rail installation without any air gap. With the dip switch, you can easily configure more than 1000 factory calibration measuring ranges. The device can operate in a wide temperature range of -25~70°C (-13~158°F).

In the center of the IS200DTAIH1ACC, there are four (4) small boards that are placed vertically on the PCB. The plates are arranged in two pairs. Located on the bottom edge of the IS200DTAIH1ACC, located between the two small circuit cards are two (2) blue capacitors. In the lower right corner of IS200DTAIH1ACC, there is a small line of four (4) blue jumpers. These jumpers can be used to change the operation of the board. The left edge of the IS200DTAIH1A is a long connector port. The port is black with a silver border around it. A group of four (4) black components is placed directly in the center of the IS200DTAIH1ACC. Between these components and the connector ports, there is a row of black semi-circular transistors.
