Description
Product details:

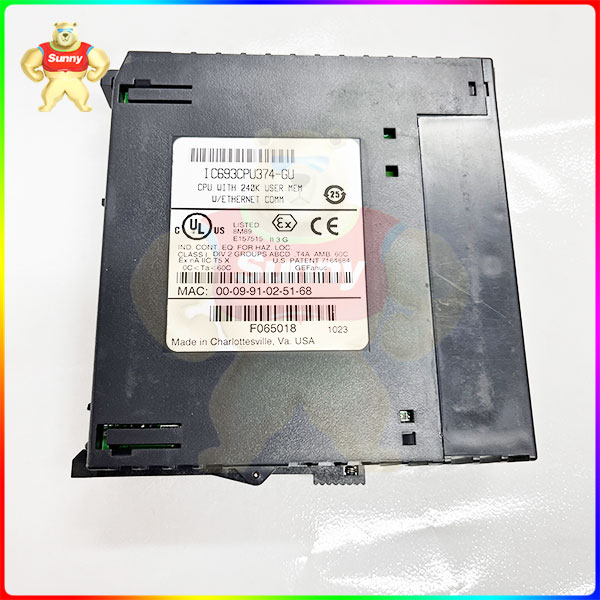

IC693CPU374 is a 90-30 series Programmable Logic controller (PLC) module of Agfanuc. This module is a processor module that hosts user programs, executes logic, and manages data exchange with the processor through embedded communication ports.
IC693CPU374 can also be called controller. The controller has a built-in microprocessor with a 586 processor at 133 MHz. Its typical scan rate is 0.15 milliseconds per 1K Boolean contact logic. The controller module has a single slot width mounted on a 90-30 PLC rack.
The user memory of IC693CPU374 is 240KB. It has two (2) Ethernet communication ports supporting 10/100 Mbps transfer speeds with automatic induction. These ports enable the controller to connect to Ethernet for communication with programming workstations such as desktops or laptops, human-machine interface (HMI) and monitoring and Data acquisition (SCADA) systems, and other processors for messaging functions. The controller can also communicate through the RS485 communication port. You can find the RS485 communication port on the power supply, whether it is a standard power supply or a large-capacity power supply.
The controller accepts user programs developed using a variety of programming software applications, such as VersaPro 2.03 or later, CIMPLICITY Machine Edition Logic Developer 2.60 or later, and control software version 2.50 or later. When editing a controller online using an existing user program, use the same software in the same or later version.
The IC693CPU374 CPU has a processor speed of 133 and a total user memory of 240 KB. Program memory can be configured according to application requirements, including a register memory that can be configured in the range of 128 to 32,640 words, and a configurable memory for analog input and analog output. The memory of the system register supports up to 28 words, and the user can set about 2000 timers and counters.
The IC693CPU374 CPU uses an 80386EX processor of AMD SC520 type and has 2 built-in Ethernet ports to allow 10/100 base-T/TX communication. The featured Ethernet port is connected through an RJ-45 connector. The device also supports the RS-485 port on the power supply and allows communication via SNP and SNPX protocols. In addition, the device also supports several common program storage devices
