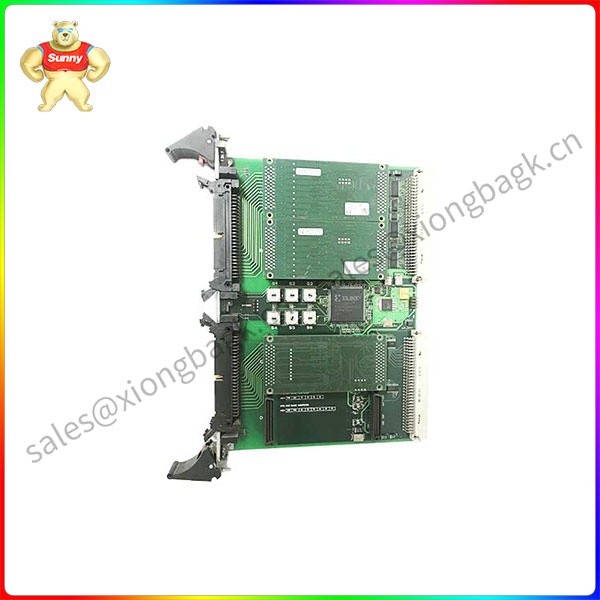

TVME200-10 VMEbus Carrier for 4 IndustryPacks

The TVME200 is 6U VMEbus Carrier for up to 4 singlesize or 2 double-size IndustryPack (IP) modules used to
build modular, flexible and cost effective I/O solutions for applications in process control, medical systems,
telecommunication and traffic control.

A set of 16-position rotary switches allows easy configuration of VME Short I/O and Memory addresses.
Interrupt routing from the IP slots to the VME IRQ’s can be done in two ways: programmable by software or selection
of predefined sets by a rotary switch.
Four 50 pin 0.1 inch flat ribbon cable connectors mounted in the front panel of the TVME200 provide access to all IP
I/O lines. Additional, on the TVME200-20 all I/O lines of ‘IP D’ are routed to VME P2 and 14 user selectable I/O
lines of ‘IP C’ can be routed to VME P2 via a jumper field. Status indicators for IP access, +5V and +/-12V are
provided.
The IP power lines are fuse protected by self healing fuses and RF filtered. The operating temperature ranges
between -40°C and +85°C.
For First-Time-Buyers the Engineering Documentation TVME200-ED is recommended. The Engineering
Documentation includes TVME200-DOC, schematics and data sheets of TVME200.

TVME200-10

 Form Factor: VMEbus Board, 6U
 VMEbus Slave Interface:
 Short I/O: A16, D08/16, size: 1 Kbyte
 Standard memory: A24, D08/16
 Size: programmable, 32 Kbytes to 2 Mbytes per IP
 Extended memory: A32, D08/16
 Size: fixed, 8 Mbytes per IP
 Interrupts: IRQ1-7
 ANSI/VITA 4-1995 compliant interface to IndustryPack modules
 IndustryPack slots: Four single-size or two double-size with front panel I/O
 8 MHz interface, no DMA
 Routing of IP interrupt levels to VME IRQ1-7: programmable by software or selection of
predefined sets by a rotary switch
 I/O access: 50 pin 0.1 inch flat ribbon cable connector per IP mounted in front panel
 Rear I/O of ‘IP C’ and ‘IP D’ (TVME200-20 only)
 Status LED’s
 ACK LED for each IP module
 +5V Power LED for each IP slot
 +12V and –12V Power LED
 Self healing fuses and RF-filtering on all IP power lines
 Operating temperature –40°C to +85°C
