Description
Product details:

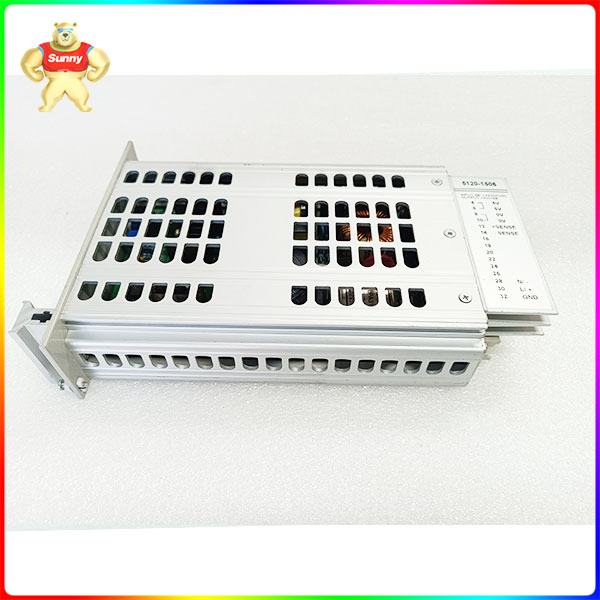

WES5120 5120-1106 Power module
The role of the power module is the conversion of voltage, it can be AC or direct current into the AC or direct current you need. Such as: the mains 220V alternating current (AC) into 5V direct current (DC), because the AC 220V electricity is high voltage, and electronic products are low voltage power supply, this requires a conversion device, the AC 220V voltage into low voltage. For example, in the motor vehicle sometimes need to be converted to 220V alternating current to use, so this will become a low voltage to high voltage, because the voltage of the motor vehicle is generally relatively low.
In short, it is similar to the mobile phone charger, your mobile phone is out of power, you need to plug in or charge it to work normally, but you can not directly use 220V, because then the phone will burn, so you need a special conversion device to convert the voltage required by the mobile phone.
1. Circuit design principle and process
The distinction between good and bad circuit principles is usually only from a professional point of view. At the present stage, the power module can be roughly divided into bare board and potting. The bare board can be based on the intuitive way, such as the layout of electronic components is reasonable and orderly, generous and orderly, and the solder joint is bright, clean and straight. And potting module, can not see the internal situation, but because not exposed, in the level of security and performance indicators much better. The welding process can include manual welding and wave soldering process. The quality of mechanized wave soldering process is better than that of manual welding.
2. Components of the chip
The core of the power supply is IC, which is like the brain of the power supply. The quality of IC directly affects the parameters of the power supply.
3. Transformer components
The transformer determines the power and temperature resistance of the power supply. The transformer is responsible for AC – DC, energy overload will saturate the machine
4, electrolytic capacitor and ceramic capacitor
Electrolytic capacitor, and monolith electrolytic capacitor, it uses sulfuric acid as the insulating medium, can make a larger capacity into a smaller volume, and marked with the + symbol, some marked with the symbol -, generally do low frequency crosslinking and bypass filtering, the disadvantage is that the meson loss is larger, monolith electrolytic capacitor, due to the use of special materials, performance is better than ordinary electrolytic, frequency characteristics is better, But the capacity can not be made too large, can be used in precise circuits, such as oscillating, or timing circuits.
Ceramic capacitors include porcelain dielectric capacity, porcelain capacitor, porcelain tube capacitor and ceramic semi-variable capacitance. Mainly non-polar, medium material is better, capacity can not do too big. Suitable for high frequency circuit.
07AC91F GJR5252300R0101 | Analog input/output module | In stock |
PPD103-B03-10-150000 | Central processing unit | New original |
5SHY4045L0004 | Thyristor | In stock |
XUD194 3BHE018137R0001 | Optical Fiber Repeater | New original |
DSAB-01C | evaluation board | In stock |
FI840F | Fieldbus module | New original |
UAC389AE02 HIEE300888R0002 | Control board module | In stock |
DP820 3BSE013228R1 | dual channel pulse counting module | New original |
UDD406A 3BHE041464R0101 | Digital input module | New original |
AGPS-11C 3AFE64692585 | anti-mis-start circuit board | New original |
UFC719AE01 3BHB000272R0001 | Drive Controller | New original |
Please contact Sunny sales@xiongbagk.cn for the best price.
