Description
Product details:

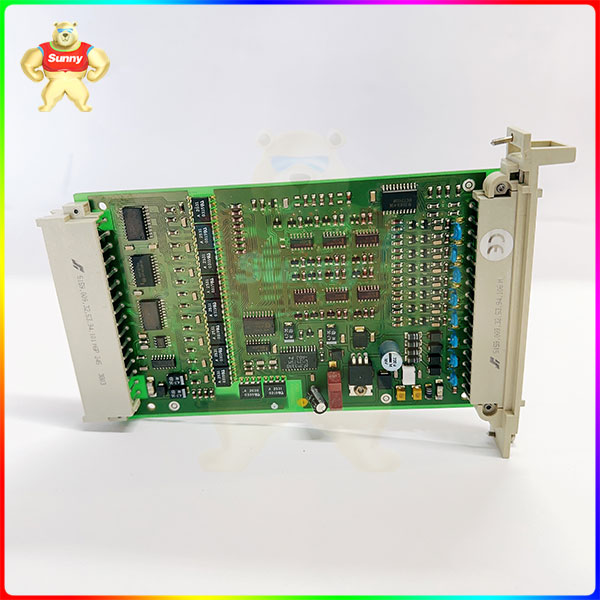

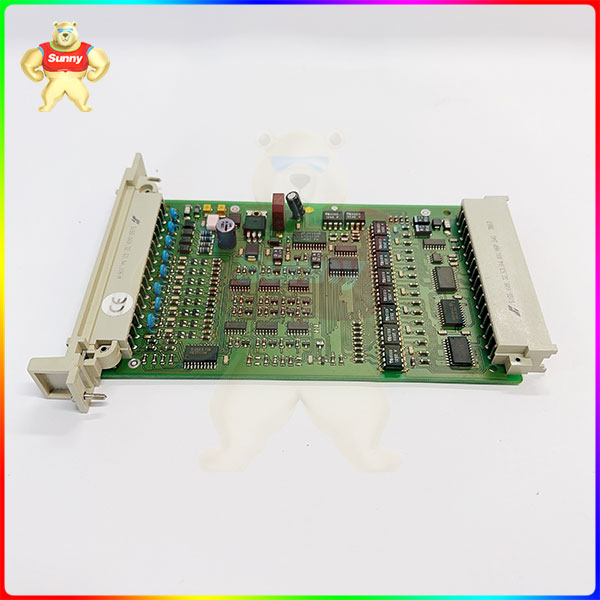

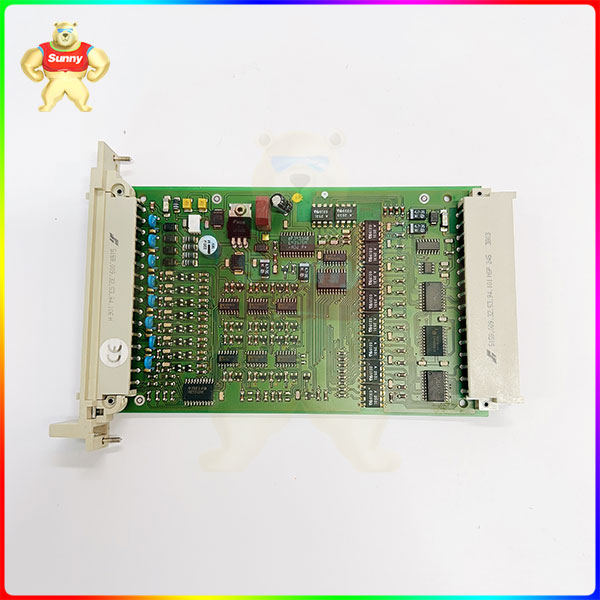

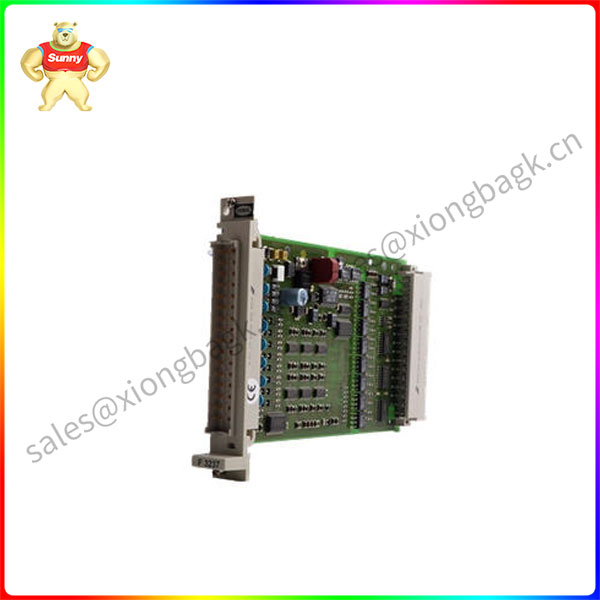

F3237: 8 fold input module,safety related
for the connection of safety related proximity switches,
proximity switches acc. to DIN 19234 (NAMUR) and
resistor-wired sensors
monitoring of the lines for short-circuit and line break
Safety related, requirement class AK 1 … 6
The module is automatically tested completely during operation. The main test routines are:
– Switch on and switch off cability
– Crosstalk of the input circuits by walking 0 test
– Function of the input filters
– Correct function of the module
– Short circuit and wire break of the sensor line
Function of LEDs are not tested.
Appertaining softw. building block: HB-RTE-. (for current version refer to
the description of the operating system).
Switching time approx. 10 ms
Operating points IE
0 signal 0.35 ≤ IE ≤ 1.2 mA
1 signal 2.1 ≤ IE ≤ 6.0 mA
wire break ≤ 0.28 mA
short circuit ≥ 6.5 mA
Line impedance ≤ 50 Ohm (acc. to DIN 19234)
Line length ≤ 1000 m (∅ = 0.5 mm2)
Supply voltage US 8.2 V
Shunt R* 681 Ohm; 1 %; 0.25 W
(R17 … R24) part no. 00 0751681
Space requirement 4 TE
Operating data 5 V =: 90 mA; 24 V =: 170 mA
F3235 8 input module for contactor with line monitoring
F3236 16 Enter the module
F3237 8 input module for proximity and contact encoders with line monitoring
F3238 8 input module (Ex), I used to take line monitoring of starter and the contactor
F3240 16 Input module 120VAC/DC
F3248 16 input module 48VAC/DC
F3330 8-way output module 12W
F3331 8-way output module with line monitoring 12W
F3333 4x 48W Output module
F3334 4x 48W output module with line monitoring
F3335 Four-way output module (Ex) i
F3348 8-way output module, 48V, 24W
F3349 8-channel monitoring output module 24V/48V, 24W
F3430 4 x Relay output module
F5220 2x counter module
F6213 4x analog input module
F6214 4x Analog input module
F6217 8 Analog input module
F6220 8x Thermocouple Input Module (Ex)
F6221 8-channel analog input module (Ex)
F6705 2x Analog Output module
F7553 Connects the EABUS2 component
