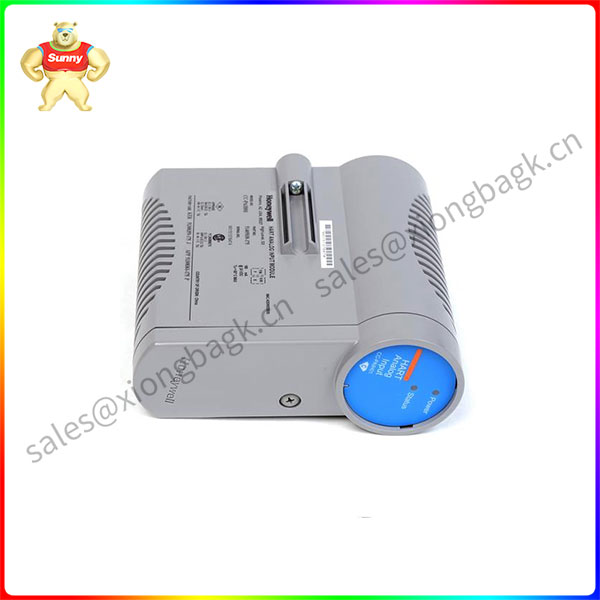

CC-PAIH02 51405038-375 advanced analog input/output module
Product Description
The CC-PAIH02 is an advanced analog input/output module from Honeywell, and the following is a detailed description of its product:
Specifications and parameters:
Number of input channels: 8 analog input channels, which may include 12 single-ended channels and 4 differential channels.
Number of output channels: 4 analog output channels.
Input voltage range: +/- 10VDC.
Output voltage range: +/- 10VDC.
Input current range: 4-20mA (for some models or applications).
Output current range: 4-20mA (for some models or applications).
Accuracy: +/-0.10% F.S.@25 ℃.
Linearity: +/-0.05% F.S.
Response time: 200ms.
Resolution: 16-bit A/D converter.
Working voltage: 24VDC.
Operating temperature range: -40°C to +70°C.
Operating humidity range: 5% to 95%RH (non-condensing).
Size and weight: The size is about 118mm x 148mm x 48mm, the weight is about 0.3-0.5kg.
Functions and Features:
HART communication function: Supports HART (Highway Addressable Remote Transducer) communication protocol for data exchange and configuration of smart devices.
Multichannel design: Multiple analog input and output channels are provided for simultaneous connection and processing of multiple analog signals.
Comprehensive self-diagnosis: The module offers a range of self-diagnostic functions that can be used for troubleshooting and maintenance.
Optional redundancy: Supports redundant configurations to improve system reliability and availability.
Broken line detection: Has a broken line detection function to help protect the module from damage.
Non-combustion energy power supply: Suitable for hazardous areas, can be powered by non-combustion energy.
Application field:
Industrial automation: In industrial automation systems, used to connect and control various analog devices, such as sensors, actuators, etc.
Building safety: In the building safety system, it is used to receive and process various analog signals, such as temperature, pressure, flow, etc., to achieve safety monitoring and control.
Fire fighting system: In the fire fighting system, it is used to receive fire alarm signals and control related equipment such as fire extinguishing system and evacuation system.
CC-PAIH02
Product parameter
CC-PAIH02 is an analog input/output module from Honeywell. The detailed parameters of this product are as follows:
Brand and Model:
Brand: Honeywell
Model: CC-PAIH02
Input/output channels:
Input channels: 8 analog input channels
Number of output channels: 4 analog output channels
Voltage and current range:
Input voltage range: +/- 10VDC
Output voltage range: +/- 10VDC
Input current range (may include) : 4-20mA, 0-20 mA, 1-5 VDC, 0-5 VDC
Output current range (may include) : 4-20mA
Impedance:
Input impedance: 250Ω, 500Ω, 1200Ω, 2500Ω
Accuracy and linearity:
Accuracy: +/-0.10% F.S.@25 ℃
Linearity: +/-0.05% F.S.
Response time:
Response time: 200ms
Power Supply:
Internal power monitoring: +5VDC +/- 5%@50mA, +24VDC
Environmental adaptability:
Operating temperature range: -40°C to +70°C
Operating humidity range: 5% to 95%RH (non-condensing)
Size and weight:
Dimensions: 118mm x 148mm x 48mm
Weight: about 0.3kg to 0.5kg
Other features:
Anti-interference ability: It can effectively resist external electromagnetic interference and noise to ensure the accuracy and reliability of the signal.
Scalability: Supports modular design and can be extended and integrated with other Honeywell modules and devices to meet the needs of applications of varying sizes and complexity.
Application field
CC-PAIH02 analog input module has a wide range of applications in many fields, including but not limited to the following:
Industrial Automation: CC-PAIH02 modules play an important role in industrial automation systems. It can connect various industrial sensors and transducers, collect and process analog signals, such as temperature, pressure, flow, level, etc., to provide accurate data support for automated control systems.
Process control: In the production process of chemical, petroleum, power and other industries, CC-PAIH02 modules are used to monitor and control various process parameters to ensure the stability and safety of the production process.
Building automation: In the building automation system, CC-PAIH02 module can be used to monitor and control various equipment in the building, such as air conditioning, lighting, security system, etc., to improve the intelligent level of the building.
Temperature monitoring: CC-PAIH02 module can receive the signal from the temperature sensor to monitor and adjust the temperature in real time to ensure that the equipment operates at the appropriate temperature.
Security system: In the security system, CC-PAIH02 module can be used to receive and process signals from various security equipment, such as fire alarm, intrusion alarm, etc., to provide strong support for security monitoring.
In addition, the CC-PAIH02 module is also suitable for other applications requiring high-precision analog signal input and processing, such as environmental monitoring, laboratory testing, etc. Its high performance, high reliability and ease of configuration make it ideal for industrial automation and control systems.
