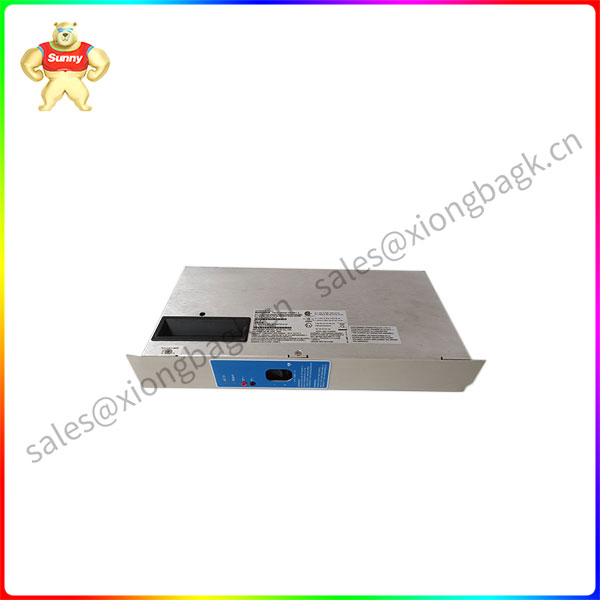

SPS5710 51199929-100 C Series Power module

SPS5710 51199929-100 Power module is a power converter that can be mounted directly on the

printed circuit board. It is generally divided into AC to DC or DC to DC according to the conversion method.

With the development of science and technology, SPS5710 51199929-100 power volume tends to modular and

miniaturized, so there is a power module. Its highest degree of integration, the main circuit of switching power

supply integrated in the chip, can achieve broadband modulation, isolation and a variety of protection and other functions.

SPS5710 51199929-100 Basic principles consist of the following parts: Input rectifier filter, including the rectifier

bridge and input filter capacitor. Monolithic switching power supply comprises power switching tube, controller and

MOSFET. There are high frequency transformer, leakage level clamp protection circuit, optocoupler feedback circuit, output rectifier filter, bias circuit and other parts.

SPS5710 51199929-100 Power module through the input rectifier filter can be adapted to AC 85 to 265V or

DC 100 to 370V input voltage range, the frequency can be selected from 47 to 400Hz, generally 50/60Hz.

SPS5710 51199929-100 Because it has a small size, high integration, high cost performance and the best performance

indicators, only the most simple peripheral circuit, with a small number of vertical components can be used. It has the

advantages of high efficiency, high reliability, flexible design and so on. It has become the preferred integrated circuit

for the development and design of small and medium power switching power supply.Choose SPS5710 51199929-100

power module solution has low technical requirements, simple design, small space, high reliability, and can be changed

at any time. When the product design needs to be changed, just parallel or replace the power module. Therefore, it is

widely used in industrial control, mechanical equipment, ships, aerospace, communications, military, data communication,

handheld electronic products, instruments and meters, LED lighting, intelligent, electric power, railway, security, mining, medical, automotive electronics and other fields.
