Product Description:

Kollmorgen offers the latest in motion control technology in products such as servo amplifiers, synchronous motors and machine control panels.

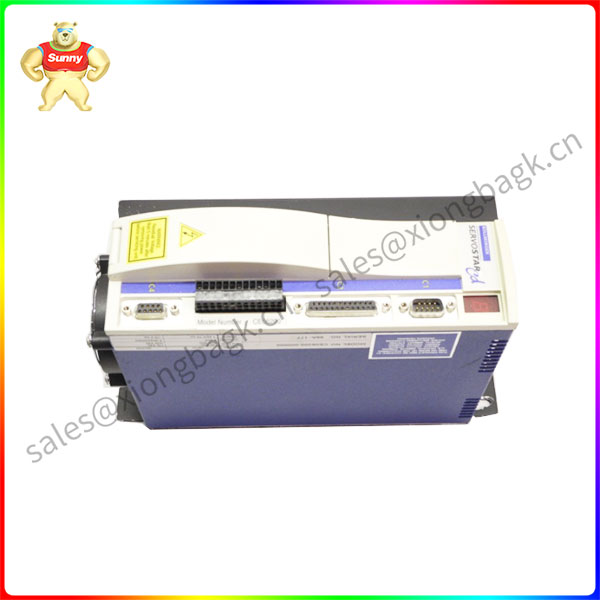

Model CE06260 is an amplifier module designed and developed by Kollmorgen for controlling the operation of servo motors. This amplifier is specifically designed to be used in conjunction with modules and components manufactured by Kollmorgen. The servo amplifiers belong to the SERVOSTAR CD series, developed for electrical connection to single-phase or three-phase AC 115 – 230 V power supplies. The unit’s line frequency range is 47 – 63 Hz. The servo amplifier draws a rated power of 0.89/1.8 kVA when operating on a 115 V supply, and an input power of 1.1/2.8 kVA when operating on a 230 V supply. The module has a continuous current requirement of 7.8 – 30 A (for 1φ and 3φ) at a nominal voltage of 115 – 230 V. To provide overvoltage protection, the servo amplifier is equipped with an external bleeder resistor. This model has a PWM frequency of 8 kHz and provides a power rating of 0.7/1.1 kVA (1φ/3φ) at 115 V input voltage and 1.4/2.2 kVA (1φ/3φ) at 230 V supply voltage.

Our company is mainly engaged in the import of industrial control spare parts. We have most of the industrial control spare parts in stock. Due to the variety of models, we cannot upload the physical pictures one by one!

If the model you need cannot be found in our store, please feel free to consult.Contact: Sunny

Contact number/whatapp: +86 18059884797

QQ: 3095989363

E-mail: sales@xiongbagk.cn

Model CE06260 is specifically designed to operate at a rated temperature of +5 to +45 degrees Celsius in a humidity range of 10% – 90%. The amplifier is equipped with encoder feedback and the unit hardware is designed as standard with a 24V logic input. The unit comes with an analog control interface to develop efficient communication between the motor and amplifier. Place an RS485 interface for connecting with the module and outputting the device. Order this product, CE06260, directly from Wake Industrial and receive it along with a one-year product replacement warranty.
