Product Overview: MOTOROLA MVME2101-1 Single Board Computer
The MOTOROLA MVME2101-1 is a high-performance Single Board Computer (SBC) designed for embedded applications requiring robust computing power, extensive I/O capabilities, and reliable operation in demanding environments. Part of Motorola’s renowned MVME2100 series, this board leverages the advanced PowerPC architecture to deliver superior processing performance for industrial automation, telecommunications, military, and aerospace systems. The “-1” suffix denotes a specific factory configuration, typically indicating particular memory, processor speed, or feature set variations.
Engineered for the VMEbus (Versa Module Eurocard) architecture, the MVME2101-1 serves as a critical component in systems where real-time processing, expandability, and longevity are essential.
Key Features & Benefits
High-Performance PowerPC Processor:
- Features a Motorola MPC750 or MPC755 RISC processor, offering advanced superscalar architecture, high clock speeds (e.g., 400 MHz to 1 GHz+), and integrated L1/L2 cache. This provides significant computational power for complex real-time applications.
VME64 Bus Interface:
- Fully compliant with the VME64 standard, supporting 32/64-bit data transfers and system controller functionality. Ensures seamless integration into existing VME systems and high-bandwidth communication with other VME boards.
Advanced Memory Architecture:
- Equipped with SDRAM (typically 128 MB to 512 MB, depending on configuration) for high-speed data processing.
- Includes Flash memory for boot code and firmware storage, enhancing reliability by eliminating mechanical storage devices.
Dual PCI Mezzanine Card (PMC) Sites:
- Supports two PMC expansion slots, enabling flexible customization with additional I/O interfaces such as Ethernet, Fiber Channel, SCSI, or custom digital/analog I/O. This modularity allows the board to adapt to diverse application requirements.
Integrated Connectivity:
- Dual 10/100 Ethernet ports for network communication.
- Serial ports (RS-232/422/485) for legacy device connectivity.
- USB ports for peripheral integration.
Ruggedized Design:
- Built to operate in harsh conditions with extended temperature tolerance, resistance to shock and vibration, and industrial-grade component reliability.

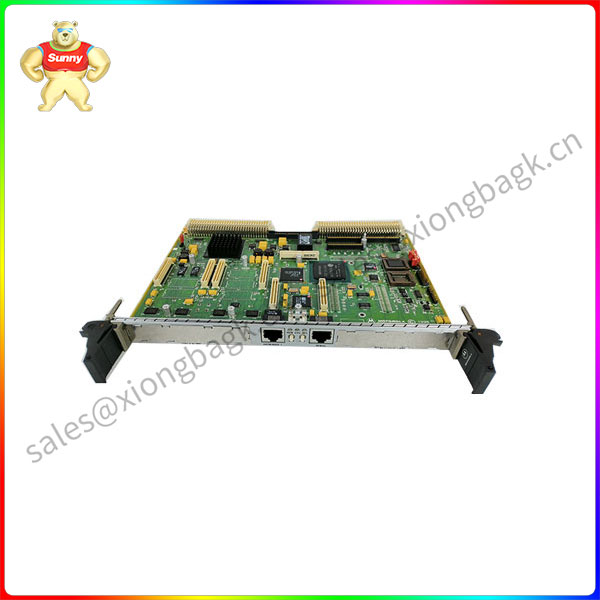

MVME2101-1
Technical Specifications
| Parameter | Specification |
| Manufacturer | Motorola (later Freescale Semiconductor, now NXP Semiconductors) |
| Model | MVME2101-1 |
| Processor | PowerPC MPC750/755 (e.g., 400 MHz – 1 GHz) |
| L2 Cache | Integrated (512 KB – 1 MB) |
| Memory | 128 MB – 512 MB SDRAM (onboard) |
| Flash | 8 MB – 16 MB |
| VMEbus Support | VME64 System Controller |
| Expansion | Two PCI Mezzanine Card (PMC) sites |
| Ethernet | Dual 10/100Base-TX ports |
| Serial I/O | RS-232/422/485 ports |
| USB | USB 1.1 ports |
| Form Factor | 6U VME (233 mm × 160 mm) |
| Operating Temperature | Industrial range (e.g., -40°C to +85°C) |
Typical Applications
- Industrial Automation: Real-time control of manufacturing systems, robotics, and process monitoring.
- Telecommunications: Network routers, base station controllers, and signal processing.
- Military & Aerospace: Mission computing, radar/sonar processing, and vehicle management systems.
- Medical Imaging: Control systems for MRI, CT scanners, and diagnostic equipment.
- Transportation: Railway signaling and traffic control systems.
Legacy Status & Considerations
- Obsolete Product: The MVME2101-1 is part of a legacy product line discontinued by Motorola/Freescale. It is typically available through secondary markets or refurbished suppliers.
- Software Support: Compatible with real-time operating systems (RTOS) such as VxWorks, LynxOS, and QNX. Driver support may be limited for modern OS versions.
- Replacement Advisory: For new designs, consider newer architectures (e.g., ARM-based SBCs or Intel x86 modules) with current software support and better power efficiency.
- Configuration Note: The “-1” suffix indicates a specific variant; users should verify exact specifications (processor speed, memory size) against official Motorola documentation.
Why Choose the MVME2101-1?
- Proven Reliability: Designed for 24/7 operation in critical environments.
- Performance: PowerPC architecture delivers strong processing capabilities for compute-intensive tasks.
- Expandability: Dual PMC sites support extensive I/O customization.
- Ecosystem Integration: Fully compatible with VMEbus systems and legacy industrial infrastructure.
Disclaimer:
This product is obsolete and not recommended for new designs. Specifications may vary based on factory configuration. Always refer to the official Motorola MVME2100 Series Hardware Documentation for precise details. Contact authorized suppliers for lifecycle status and replacement options.
